Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr ON Semiconductor
Series SWITCHMODE™
Package Bulk
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 800 V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Max) @ If 1.85 V @ 4 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 100 ns
Current - Reverse Leakage @ Vr 25 µA @ 800 V
Mounting Type Through Hole
Package / Case DO-201AA, DO-27, Axial
Supplier Device Package Axial
Operating Temperature - Junction -65°C ~ 175°C
Standard Package 1,401 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 645883-MUR480ES

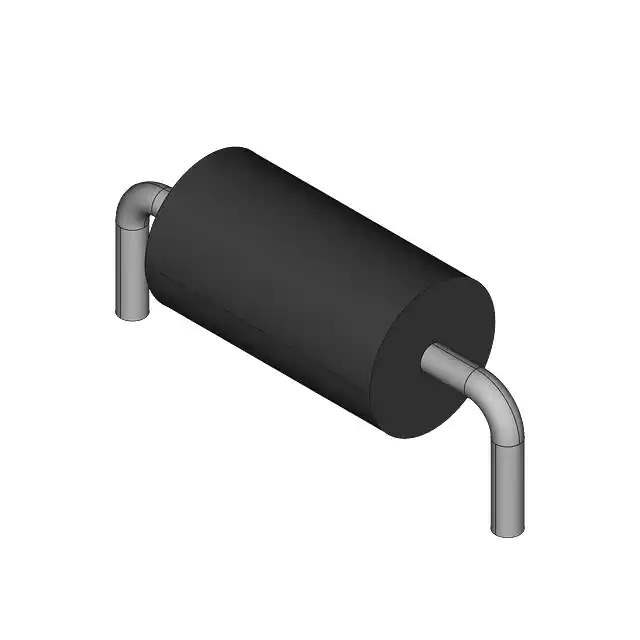

Ultra Librarian 3D Model Ultra Librarian MUR480ES CAD Model

Description

ON Semiconductor MUR480ES Ultrafast Rectifier

The ON Semiconductor MUR480ES is a state-of-the-art ultrafast rectifier designed to provide efficient and reliable performance for a wide range of high-frequency applications. This component is specifically engineered to minimize power loss and heat generation, which is crucial for maintaining the integrity and longevity of electronic systems.

Key Features:

  • Voltage Rating: The MUR480ES boasts a reverse voltage rating of 800V, making it suitable for high-voltage applications.
  • Current Capacity: With a forward current rating of 4A, this rectifier can handle significant power levels, ensuring compatibility with a variety of electronic circuits.
  • Ultrafast Recovery Time: The device features an ultrafast recovery time of 25 ns, which is essential for switching applications and reduces losses during the conversion process.
  • Low Forward Voltage Drop: A low forward voltage drop reduces power dissipation and improves efficiency, which is beneficial in power-sensitive designs.
  • High Surge Capacity: The MUR480ES is capable of withstanding high surge currents, offering robust protection against transient voltage spikes.
  • Package: Encased in an axial-lead package, the MUR480ES is designed for easy installation and is suitable for through-hole mounting, providing a secure and reliable mechanical and electrical connection.

Applications:

The MUR480ES is ideal for a plethora of applications, including:

  • Switching power supplies
  • Converters
  • Free-wheeling diodes
  • Reverse battery protection
  • Power management devices

Reliability and Quality:

ON Semiconductor is renowned for its commitment to quality and reliability, and the MUR480ES is no exception. It is manufactured to meet the highest industry standards, ensuring consistent performance and durability. Whether for commercial, industrial, or high-reliability applications, the MUR480ES from ON Semiconductor is an excellent choice for designers seeking an ultrafast rectifier with superior characteristics.
