The MUR3060WTG is a state-of-the-art ultrafast rectifier designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This high-performance diode is engineered to meet the rigorous demands of high-frequency power efficiency applications. With its ultrafast reverse recovery time and low forward voltage drop, the MUR3060WTG is an ideal choice for power supply designers looking to improve the efficiency and thermal performance of their systems.

Key Features

• Ultrafast Reverse Recovery Time: The MUR3060WTG boasts an impressive reverse recovery time, which significantly reduces power losses during the switching process and enhances overall system efficiency.
• High Surge Capability: Designed to withstand high surge currents, this rectifier ensures reliability and robustness in applications that experience transient overcurrent conditions.
• Low Forward Voltage Drop: The low forward voltage drop feature minimizes conduction losses, which contributes to a lower operating temperature and an increased lifespan for the device.
• High Voltage Rating: With a peak repetitive reverse voltage of 600V, the MUR3060WTG is well-suited for high-voltage applications, providing designers with a versatile component for their power circuits.

Applications

The MUR3060WTG ultrafast rectifier is commonly used in a variety of power applications, including:

• Switch-mode power supplies (SMPS)
• Power factor correction (PFC) circuits
• High-frequency PWM inverters
• Freewheeling diodes in converters and motor control circuits
• Snubber diode applications

Technical Specifications

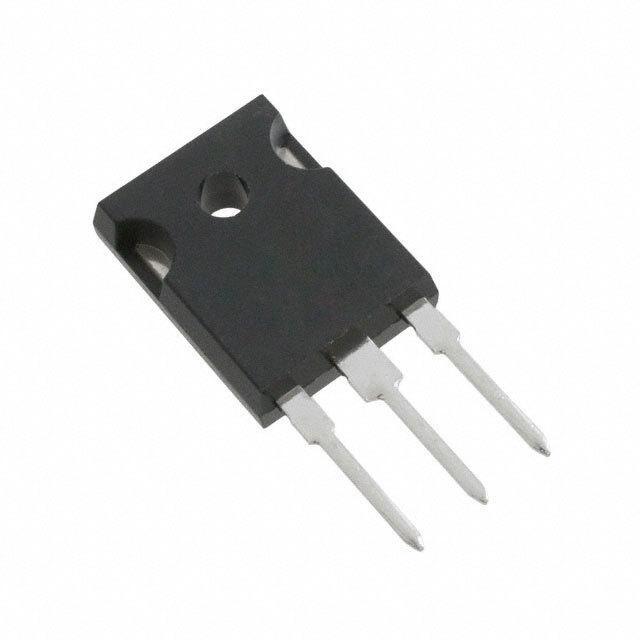

The MUR3060WTG is encapsulated in a TO-247 package, known for its high power dissipation capabilities. It operates within a junction temperature range of -65°C to 175°C, making it suitable for a wide range of environmental conditions. The device is also RoHS compliant, adhering to the latest environmental standards and regulations.

Quality and Reliability

ON Semiconductor is committed to delivering high-quality products. The MUR3060WTG ultrafast rectifier is subjected to rigorous testing and quality control measures to ensure it meets the high standards expected by the industry. Its performance and reliability make it a preferred choice for engineers and designers across the globe.
