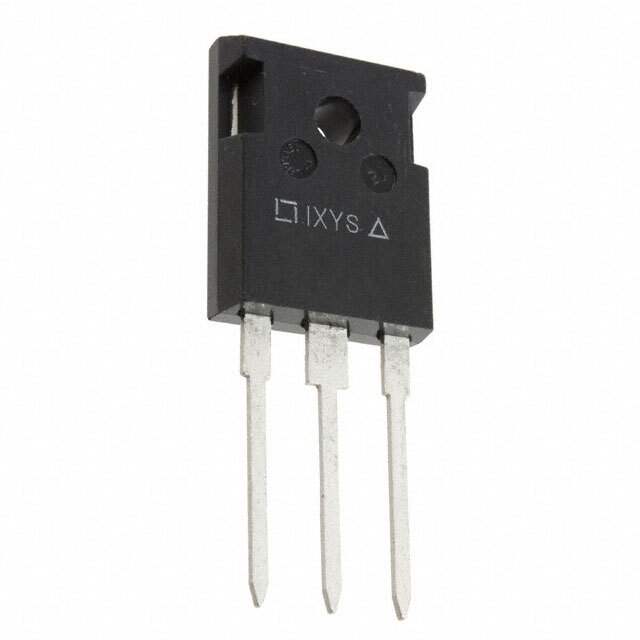

DSSK70-008A Real Image
Same model may have multiple batches, images only for reference.

DSSK70-008A

Part No DSSK70-008A
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 80V 35A
Datasheet
DSSK70-008A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 80V
Current - Average Rectified (Io) (per Diode) 35A
Voltage - Forward (Vf) (Max) @ If 760mV @ 35A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 4mA @ 80V
Operating Temperature - Junction -55°C to 175°C
Mounting Through Hole
Case / Package ISOPLUS247
Win Source Part Number 040117-DSSK70-008A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DSSK70-008A CAD Model

Description

DSSK70-008A Power Diode

The DSSK70-008A power diode is crafted for efficiency in large-scale electronic systems, providing high power handling capacity.

  • Power Handling: Designed to manage significant power levels securely.
  • Durable Design: High-quality materials ensure enduring performance under stress.
  • Versatile Operation: Can be used in a wide range of electronic assemblies and circuits.

Applications

  • Renewable Energy Systems
  • Power Electronics
  • Industrial Power Supplies

Benefits: Offers reliability and efficiency, making it a preferred choice for industrial and large-scale applications.
