Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 400V
Current - Average Rectified (Io) 15A
Voltage - Forward (Vf) (Max) @ If 1.25V @ 15A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 60ns
Current - Reverse Leakage @ Vr 10μA @ 400V
Mounting Through Hole
Case / Package TO-220-2
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 024625-MUR1540G
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MUR1540G CAD Model

Description

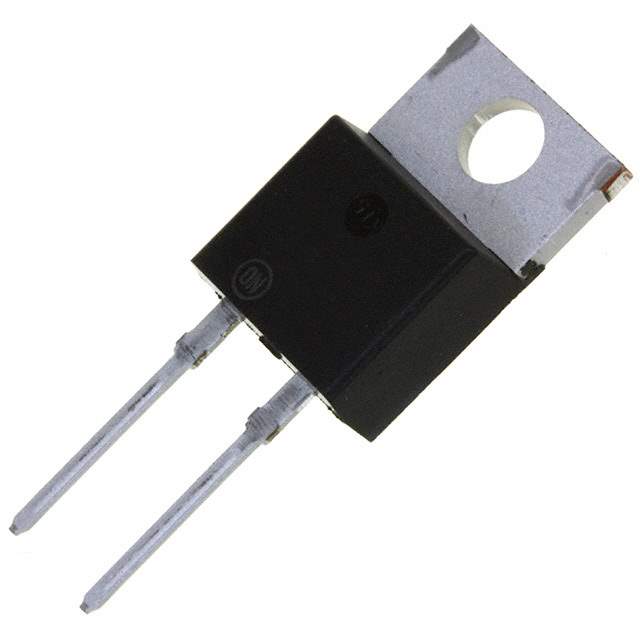

The MUR1540G from ON Semiconductor is a state-of-the-art ultra-fast recovery rectifier designed to cater to high-efficiency power supply applications. This rectifier is a perfect choice for engineers looking for a component that offers both high performance and reliability.

Key Features

  • Voltage Rating: The MUR1540G boasts a reverse voltage rating of 400V, making it suitable for a wide range of applications that require a high breakdown voltage.
  • Current Capacity: With a forward current capacity of 15A, this rectifier can handle significant power, ensuring smooth operation even under heavy load conditions.
  • Ultra-Fast Recovery Time: The device features an ultra-fast recovery time of 35ns, which minimizes power loss and improves efficiency in high-frequency operations.
  • Low Forward Voltage Drop: The low forward voltage drop reduces power dissipation, thus enhancing the overall efficiency of the power supply circuit.
  • High Surge Current Capability: The MUR1540G is capable of withstanding high surge currents, making it robust against sudden spikes in the circuit.
  • Reverse Leakage Current: It has a low reverse leakage current, which contributes to reduced power loss and improved thermal performance.
  • Package: Enclosed in a TO-220 package, the MUR1540G is easy to mount and provides excellent heat dissipation characteristics.

Applications

The ultra-fast recovery time and high voltage rating of the MUR1540G make it an ideal choice for various applications including:

  • Switch-mode power supplies (SMPS)
  • Power factor correction (PFC) circuits
  • Freewheeling diodes in converters and inverters
  • High-frequency rectification circuits
  • Energy-efficient power applications

Quality and Reliability

ON Semiconductor is renowned for its commitment to quality, and the MUR1540G is no exception. It is manufactured with the highest standards, ensuring that it meets the rigorous demands of industrial and commercial applications. The device's robust construction guarantees long-term reliability, making it a trusted component in any power management system.

Whether you are designing a new power supply or seeking to improve an existing system, the MUR1540G from ON Semiconductor provides the performance and durability you need to create efficient, reliable solutions.
