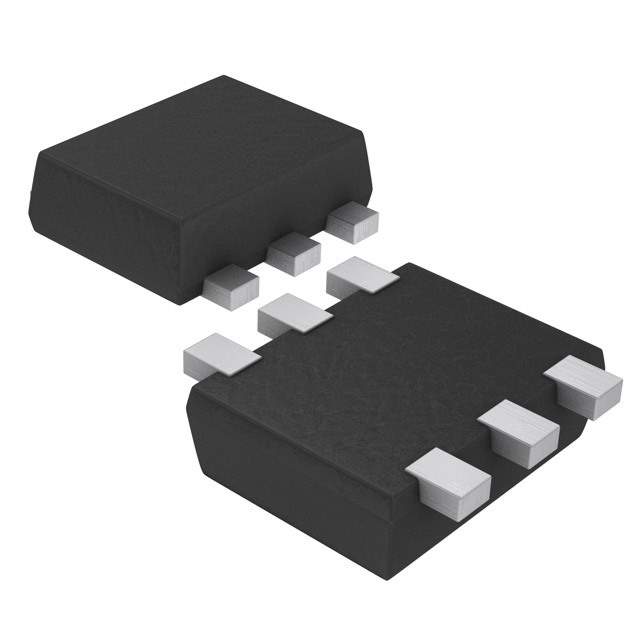

MCH6664-TL-W

Part No MCH6664-TL-W
Manufacturer ON Semiconductor
Catalog FETs - Arrays
Description MOSFET 2P-CH 30V 1.5A SOT363 / P-Channel Power MOSFET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer ON Semiconductor
Packaging Reel
FET Type 2 P-Channel (Dual)
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) at 25°C 1.5A
Rds On (Maximum) at Id, Vgs 325mOhm at 800mA, 10V
Vgs(th) (Maximum) at Id 2.6V at 1mA
Gate Charge (Qg) (Maximum) at Vgs 2.2nC at 10V
Input Capacitance (Ciss) (Maximum) at Vds 82pF at 10V
Power - Max 800mW
Temperature Range - Operating 150°C
Mounting Style SMD
Manufacturer Package 6-SMD, Flat Leads
Supplier Device Package SC-88FL/MCPH6
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803272-MCH6664-TL-W
Ultra Librarian 3D Model Ultra Librarian MCH6664-TL-W CAD Model

Description

The MCH6664-TL-W is a state-of-the-art P-Channel Power MOSFET designed and manufactured by ON Semiconductor, a leader in the field of energy-efficient innovations. This product is renowned for its high-speed switching capabilities and energy-efficient performance, making it a preferred choice for a wide range of applications.

Key Features

  • Low On-Resistance: The MCH6664-TL-W boasts an exceptionally low on-resistance, which translates to reduced power loss and improved energy efficiency during operation.
  • High-Speed Switching: Engineered for rapid switching, this MOSFET is well-suited for applications that require quick response times, contributing to overall system performance.
  • Small Package: Encased in a compact SOP-8 package, the MCH6664-TL-W is designed to fit into tight spaces without sacrificing performance, making it ideal for portable and space-constrained applications.
  • Voltage Tolerance: With a drain-source voltage (Vds) of -30V, it can handle significant voltage levels, providing robust performance for a variety of circuits.

Applications

The versatility of the MCH6664-TL-W allows it to be used in numerous applications across various sectors. Some of the common applications include:

  • Power Management Systems
  • DC/DC Converters
  • Load Switches
  • Battery Management Systems
  • Motor Drives

Product Specifications

Parameter Value
Drain-Source Voltage (Vds) -30V
Continuous Drain Current (Id) -6A
Power Dissipation (Pd) 1.2W
Operating Temperature Range -55°C to +150°C

With its robust construction and reliable performance, the MCH6664-TL-W from ON Semiconductor is an excellent choice for designers looking to enhance the efficiency and longevity of their electronic systems. Its adherence to the stringent quality standards set by ON Semiconductor ensures that this component is not only powerful but also dependable.
