The MC74F299N from ON Semiconductor is a high-performance, 8-bit universal shift/storage register that offers exceptional utility in a wide range of digital applications. This integrated circuit is part of ON Semiconductor's F-Series, which is renowned for its fast switching speeds and high reliability.

Key Features

• Shift/Register Mode Control: The MC74F299N allows users to switch between shift and register modes, providing versatility in operations such as serial-to-parallel conversion, parallel-to-serial conversion, holding, and more.
• Parallel Input/Output: Equipped with eight bidirectional data lines, the device enables easy parallel data input or output, making it suitable for interfacing with buses and other data communication components.
• Asynchronous Master Reset: An asynchronous master reset feature is included to clear the register, ensuring a clear and predictable initialization state for reliable operation.
• Serial Input/Output: The MC74F299N supports serial data input and output, which is essential for applications requiring serial data processing or chaining of multiple registers for extended word lengths.
• Edge-Triggered Clocking: The device operates with edge-triggered clocking, which enhances precise timing control and synchronization within the system.

Applications

The versatility of the MC74F299N makes it an excellent choice for a variety of applications, including:

• Microprocessor bus interfacing
• Data communication systems
• Computer system peripheral interfacing
• Instrumentation and control systems
• Temporary data storage

Technical Specifications

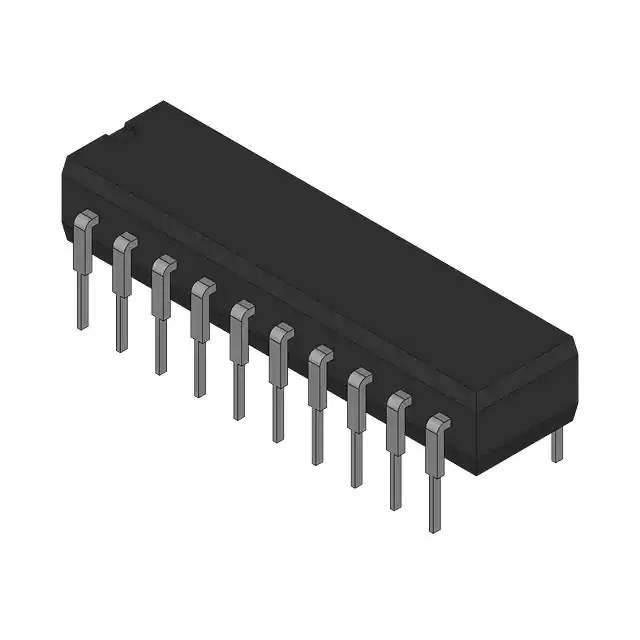

The MC74F299N is housed in a standard plastic DIP (Dual In-line Package) with a 20-pin configuration. It operates over a wide voltage range and is characterized by its high-speed performance. The device is designed to interface with TTL logic levels and is fully compatible with most other F-series logic products.

Quality and Reliability

ON Semiconductor is committed to providing high-quality products. The MC74F299N is manufactured with this commitment in mind, ensuring reliable performance and a long operational lifespan for your electronic projects and commercial applications.
