Products specifications

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Series SWITCHMODE
Packaging Tray
Part Status Obsolete(EOL)
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 100V
Current - Average Rectified (Io) (per Diode) 200A
Voltage - Forward (Vf) (Maximum) @ If 830mV @ 200A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 6mA @ 100V
Mounting Chassis Mount

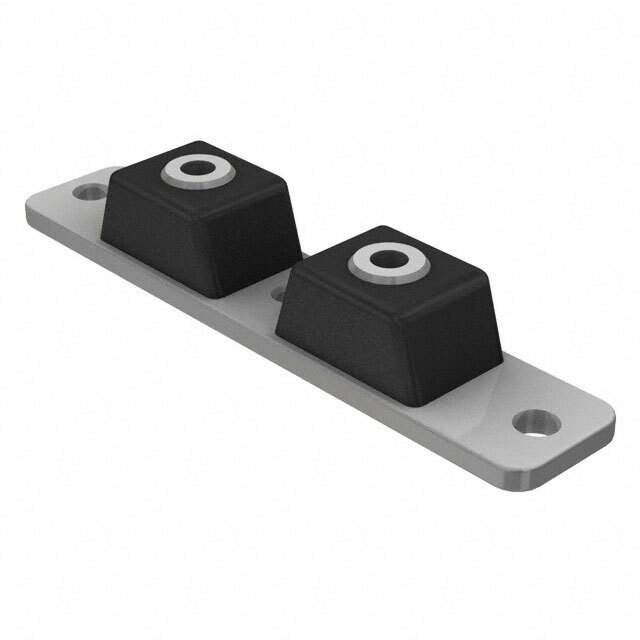

Package Powertap II
Manufacturer Package PowerTap II
Win Source Part Number 787593-MBRP400100CTL
Popularity Medium
Supply and Demand Status Limited
Family Name MBRP400100CTL
Introduction Date February 12, 1998
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MBRP400100CTL CAD Model

Description

The MBRP400100CTL is a state-of-the-art Schottky barrier rectifier designed by ON Semiconductor, a leading force in energy-efficient innovations. This high-performance diode is engineered to meet the demands of high-frequency and energy-sensitive applications, making it an ideal choice for a variety of electronic circuits.

Key Features

  • High Surge Capacity: The device can handle a high level of surge current, providing robust performance during sudden transients.
  • Low Forward Voltage Drop: Its low forward voltage drop minimizes power loss and improves efficiency, which is crucial for power-sensitive designs.
  • High Junction Temperature: With an operating junction temperature range of -65°C to +175°C, it ensures reliability across a wide range of thermal conditions.
  • Guard Ring Die Construction: The guard ring design provides enhanced reliability through transient protection, making it suitable for voltage-sensitive applications.

Electrical Characteristics

The MBRP400100CTL boasts a maximum average forward rectified current of 400 A, with a peak repetitive reverse voltage of 100 V. Its forward voltage drop is typically 0.85 V, contributing to its energy-efficient operation. The device also features a maximum reverse leakage current of 1 mA, which is impressively low for a diode of its class.

Applications

ON Semiconductor's MBRP400100CTL is versatile and can be used in a variety of applications, including:

  • Power supply units
  • DC-DC converters
  • Free-wheeling diodes in converters and motor control circuits
  • Automotive applications where high efficiency is required
  • Energy management and renewable energy systems

Quality and Environmental Compliance

ON Semiconductor is committed to environmental stewardship and ensures that the MBRP400100CTL complies with RoHS directives, making it suitable for use in green products. The device is also manufactured in facilities that adhere to rigorous quality standards, ensuring reliable performance and longevity.
