Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Tube
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 100V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Maximum) at If 800mV at 15A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 4.5μA at 100V
Operating Temperature - Junction 175°C (Maximum)
Mounting Style Through Hole
Manufacturer Package TO-220-3
Supplier Device Package TO-220AB
Family Part Number MBR30H100CT
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1216113-MBR30H100CT
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management, Industrial, Sensing & Instrumentation
Ultra Librarian 3D Model Ultra Librarian MBR30H100CT CAD Model

Description

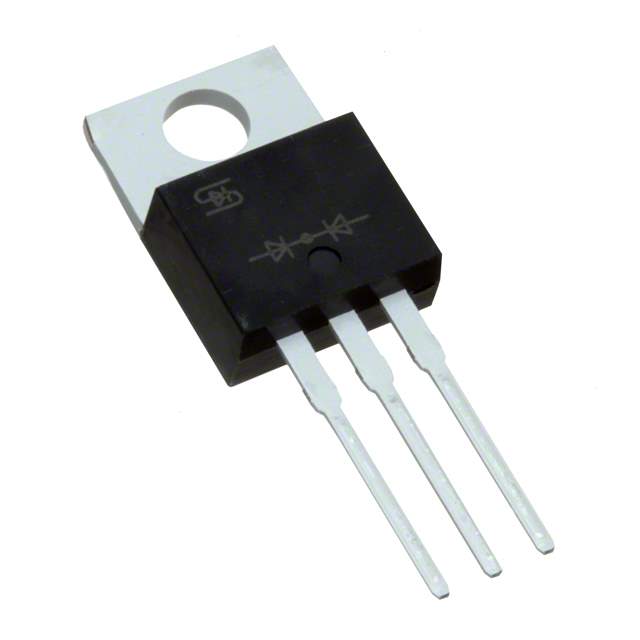

ON Semiconductor MBR30H100CT Schottky Diode

The ON Semiconductor MBR30H100CT is a high-performance Schottky barrier rectifier designed for applications that require efficient power management and high reliability. This device is particularly suitable for switch-mode power supplies, DC-DC converters, free-wheeling diodes, and polarity protection applications. Its low forward voltage drop and high current capability make it an excellent choice for high-efficiency power systems.

Key Features

  • High Surge Capacity: The MBR30H100CT can handle high surge currents, which is essential for applications that experience short bursts of overcurrent conditions.
  • Low Power Loss: With a low forward voltage drop, this Schottky diode minimizes power loss, enhancing overall system efficiency.
  • High Current Operation: With a forward continuous current rating of 30A, it can support high current applications with ease.
  • High Voltage Rating: The device has a maximum repetitive reverse voltage of 100V, making it suitable for high-voltage operations.
  • Thermal Management: The MBR30H100CT comes in a TO-220 package, which is known for its excellent thermal characteristics, ensuring the device operates within its temperature limits even at high currents.
  • Guard Ring Protection: The inclusion of guard ring die construction offers enhanced ruggedness and long-term reliability.

Applications

  • Switch-mode power supplies (SMPS)
  • DC-DC converters
  • Free-wheeling diodes in converters and motor control circuits
  • Polarity protection applications
  • Power factor correction (PFC) circuits

The MBR30H100CT is a testament to ON Semiconductor's commitment to providing high-quality components that meet the rigorous demands of modern electronic systems. Its robust design and superior electrical characteristics ensure it can perform in a wide range of challenging environments and applications. Whether you're designing a power supply for consumer electronics or industrial equipment, the MBR30H100CT offers a reliable and efficient solution for your rectification needs.

With its combination of high surge capability, low power loss, and high current operation, the MBR30H100CT is an excellent choice for engineers looking to optimize their power management systems for both performance and reliability.
