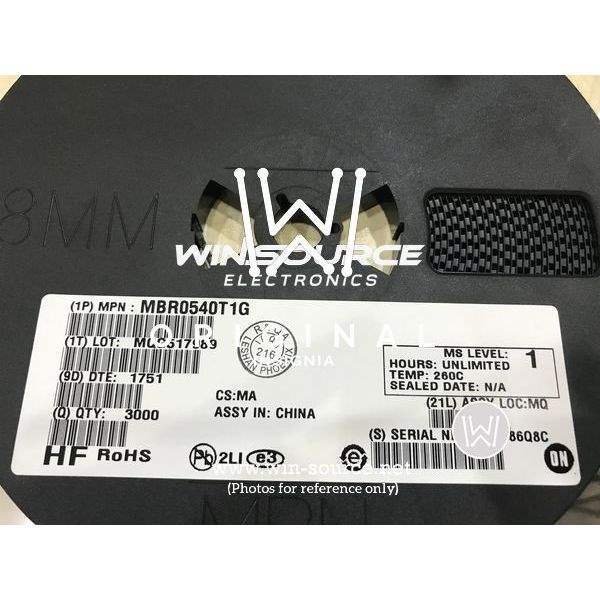

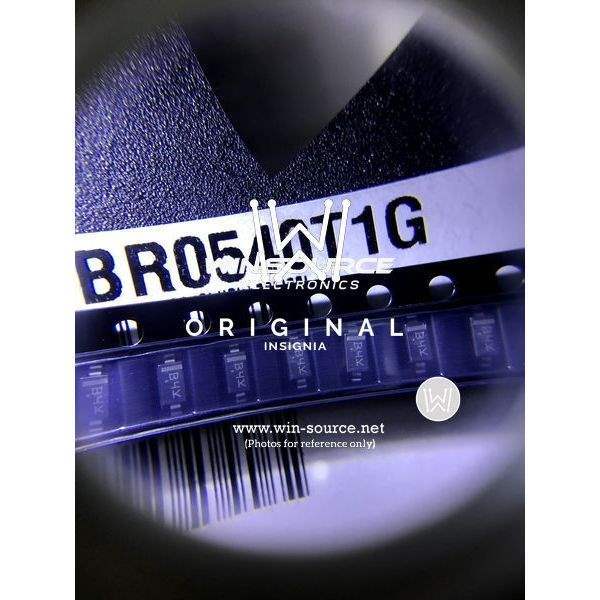

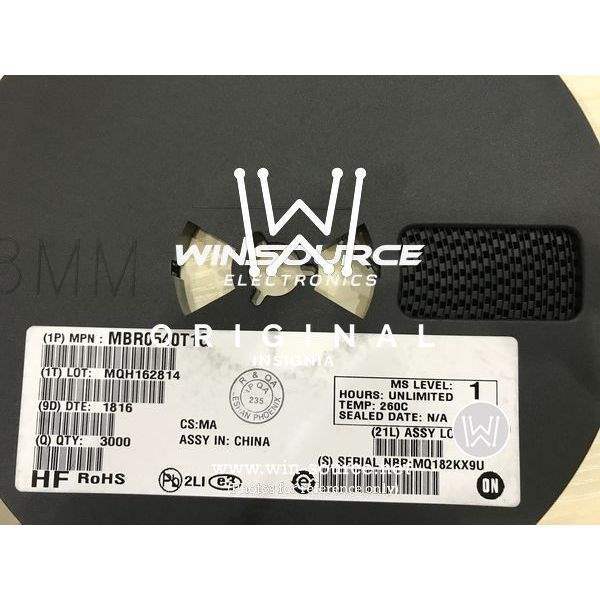

ON Semiconductor MBR0540T1G Schottky Barrier Rectifier

The MBR0540T1G is a robust Schottky barrier rectifier from the reputable manufacturer ON Semiconductor. Designed for high-efficiency power management applications, this semiconductor device is engineered to offer low forward voltage drop and minimal leakage current, making it an ideal choice for a wide range of electronic circuits.

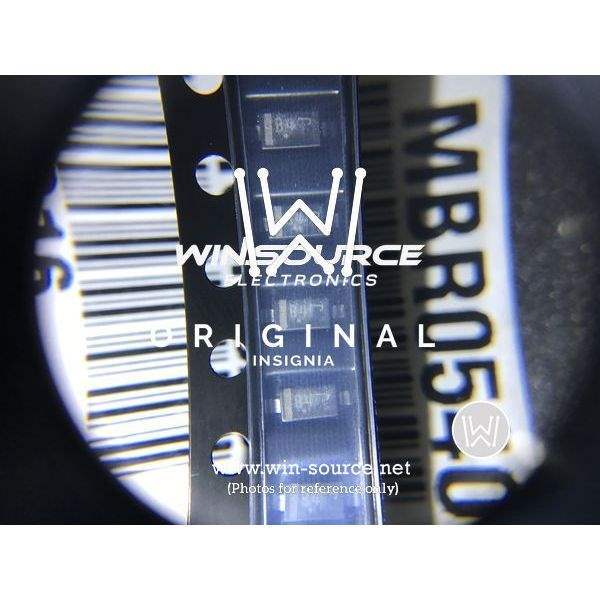

The MBR0540T1G is characterized by its compact surface-mount package, specifically the SOD-123 configuration, which is highly favored in modern electronics for its space-saving footprint. This package is not only small but also provides excellent power dissipation characteristics, ensuring reliable operation even under high current conditions.

With a reverse voltage of 40V and a forward continuous current of 0.5A, this rectifier can handle moderate power requirements with ease. Its fast switching capability ensures that it can be used in applications requiring quick response times, such as in switch-mode power supplies, converters, and freewheeling diodes in various electronic devices.

ON Semiconductor has designed the MBR0540T1G with a guard ring for enhanced ruggedness and long-term reliability. This feature is particularly important in protecting against voltage spikes and transients, which can be detrimental to electronic components. Additionally, the rectifier is characterized by its low power loss and high efficiency, which contribute to energy savings in end applications.

Environmental concerns are also addressed with the MBR0540T1G, as it is lead-free, halogen-free, and RoHS compliant, making it suitable for use in green products. Its compliance with environmental regulations ensures that it can be used in markets with strict environmental standards without compromising performance or quality.

In summary, the MBR0540T1G Schottky barrier rectifier from ON Semiconductor is a high-performance, reliable, and environmentally friendly component suitable for various power management applications. Its compact design, efficiency, and ruggedness make it a top choice for engineers and designers looking to optimize their power circuitry.

Technical Specifications:

• Package: SOD-123
• Reverse Voltage: 40V
• Forward Continuous Current: 0.5A
• Low Forward Voltage Drop
• Guard Ring for Overvoltage Protection
• Fast Switching Speed
• Lead-Free, Halogen-Free, RoHS Compliant
