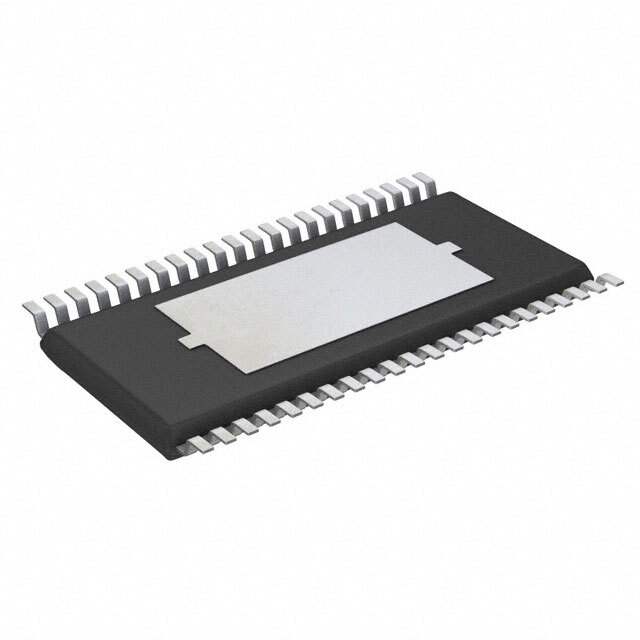

The LV8736V-TLM-H from ON Semiconductor is a highly efficient, dual H-bridge motor driver that is designed to drive a two-phase bipolar stepper motor or two DC motors. It is an ideal choice for a wide range of applications, including office automation machines, home appliances, gaming machines, and medical equipment.

Key Features

• Integrated Dual H-Bridge: The LV8736V-TLM-H is capable of driving two independent motors simultaneously, thanks to its dual H-bridge configuration. This feature allows for precise control of the direction and speed of each motor.
• High Voltage and Current Rating: With an operating voltage range from 9V to 32V and an output current capacity of up to 1A per channel, this motor driver can handle a broad spectrum of motor specifications.
• Low RDS(on): The low on-resistance of the H-bridge MOSFETs ensures efficient operation with minimal heat generation, contributing to the longevity of the device.
• Thermal Shutdown and Under-Voltage Lockout: Safety features such as thermal shutdown and under-voltage lockout protect the device and the motors from damage due to overheating or insufficient power supply.
• Multiple Control Modes: The LV8736V-TLM-H supports various control modes including forward, reverse, brake, and standby, providing flexibility in motor control.

Product Advantages

The LV8736V-TLM-H is designed with the user in mind, offering a compact package and simplified control interface that makes it easy to integrate into a variety of designs. Its robust construction ensures reliable performance in demanding environments. The inclusion of multiple protection features ensures that both the motor driver and the motors it controls are safeguarded against potential hazards, increasing the overall system reliability.

Applications

Due to its versatility and high performance, the LV8736V-TLM-H is suitable for a myriad of applications. It can be used in precision-driven devices such as 3D printers and CNC machines, as well as in consumer electronics like robotic vacuum cleaners and smart home devices. Its ability to drive two motors independently also makes it an excellent choice for dual-axis control systems in cameras and antenna positioning equipment.

Overall, the LV8736V-TLM-H motor driver from ON Semiconductor is a powerful and reliable solution for designers looking to control motors with precision and efficiency.
