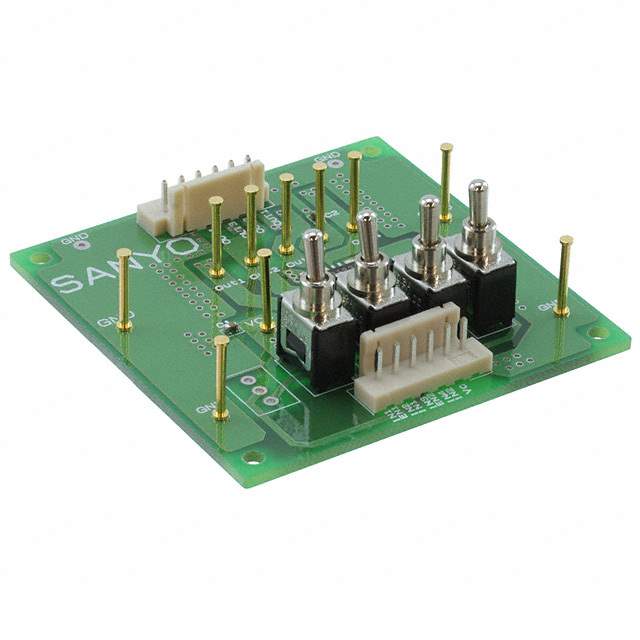

The LB1836MEVB from ON Semiconductor is a versatile and efficient motor driver solution designed to cater to a wide range of applications requiring low-voltage and low-power motor control. This motor driver is particularly well-suited for portable devices, home appliances, and office automation equipment, where it can drive both DC and stepper motors with precision and reliability.
Key Features
- Low-Voltage Operation: The LB1836MEVB operates at a voltage range of 2.5V to 9V, making it ideal for battery-powered applications where energy efficiency is crucial.
- Dual H-Bridge: Equipped with a dual H-Bridge, the LB1836MEVB can control two DC motors or one stepper motor, providing flexibility in application design.
- Low Saturation Voltage: It features a low saturation voltage, which reduces power loss and improves overall efficiency during operation.
- Output Current Capacity: The device can deliver an output current of up to 400 mA per channel, ensuring robust performance for a range of motor sizes.
- Thermal Shutdown Function: Safety is a priority with the LB1836MEVB, which includes a thermal shutdown function to protect the device from overheating.
Applications
- Portable electronic devices
- Battery-powered toys
- Home appliances
- Office automation machines
- Small industrial equipment
Technical Specifications
Parameter
Value
Operating Voltage Range
2.5V to 9V
Output Current (per channel)
400 mA
Package
SSOP-B24
Operating Temperature
-20°C to +85°C
The LB1836MEVB from ON Semiconductor is a highly integrated motor driver that combines performance, efficiency, and versatility in a compact package, making it an excellent choice for designers looking to optimize their motor control applications.
