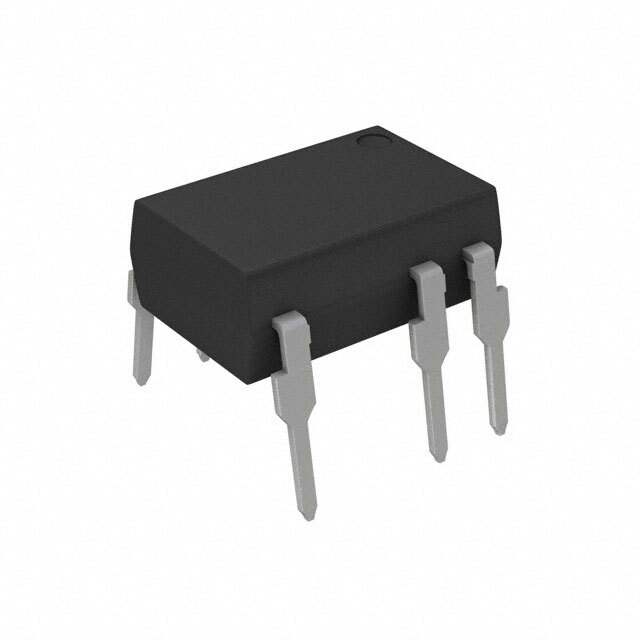

The ON Semiconductor FSD210 is a robust integrated power switch designed for high-efficiency power management applications. This advanced component is part of ON Semiconductor's Fairchild Power Switch (FPS) series, which combines a fully avalanche-rated SenseFET with a current mode PWM controller in a single package. The FSD210 is engineered to deliver precise power control and is ideally suited for a wide range of applications, including switch mode power supplies (SMPS), adapters, and various consumer electronics.

Key Features

• Precision Fixed Operating Frequency: The FSD210 operates at a fixed frequency of 67kHz, which allows for a predictable performance and simplifies the design of the external circuit.
• Advanced Burst-Mode Operation: This feature significantly reduces power consumption during standby mode, making it an energy-efficient solution that meets modern green standards.
• Internal Start-up Circuit: With an integrated start-up circuit, the FSD210 minimizes external components, thus reducing the overall bill of materials and simplifying the power supply design.
• Over-Voltage Protection (OVP): The device offers robust protection against over-voltage conditions, ensuring the safety and longevity of the end application.
• Over-Load Protection (OLP) and Over-Temperature Protection (OTP): These features provide additional layers of security, safeguarding the device and connected components from excessive load and temperature conditions.
• Auto-Restart Mode: In the event of a fault condition, the FSD210 automatically restarts, which helps to reduce service interruptions and maintain system reliability.

Applications

The ON Semiconductor FSD210 is versatile and can be used in a variety of applications. It is particularly well-suited for:

• AC/DC power supplies for consumer electronics
• Standby and auxiliary power supplies
• Adapter power supplies
• Open-frame SMPS

Conclusion

The FSD210 from ON Semiconductor exemplifies a state-of-the-art power switch that combines functionality, efficiency, and protection features in a compact package. It is an ideal choice for designers looking to enhance the performance and reliability of their power management systems while meeting stringent energy-saving requirements.
