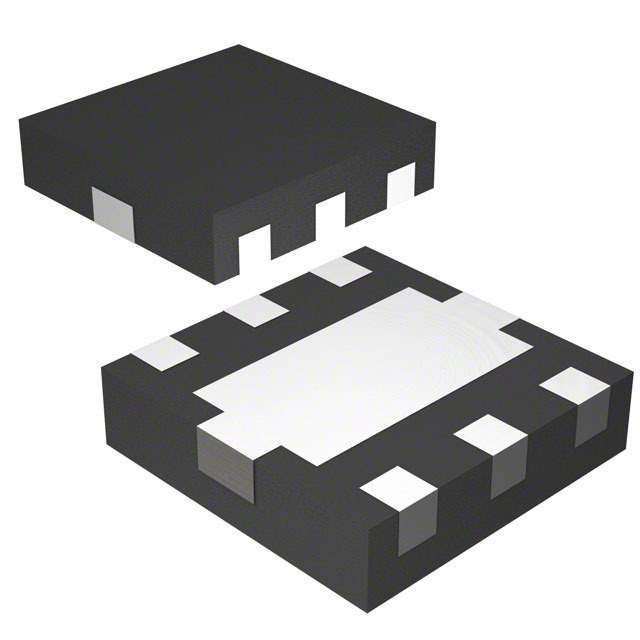

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories RF/IF and RFID
Features RF Amplifier IC GPS 1575.42MHz 6-TSON
Manufacturer CEL
Package Reel - TR
Part Status Obsolete
Mounting Surface Mount
Package 6-XFDFN Exposed Pad
Case / Package 6-TSON
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN 7A994
HTSUS 8542.33.0001
Other Part Number UPC8240T6N-E2-ATR, UPC8240T6N-E2-ADKR, UPC8240T6N-E2-A-ND, UPC8240T6NE2A, UPC8240T6N-E2-ACT
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 930060-UPC8240T6N-E2-A
Ultra Librarian 3D Model Ultra Librarian UPC8240T6N-E2-A CAD Model

Description

The UPC8240T6N-E2-A from CEL is an RF amplifier IC that operates @ GPS 1575.42MHz frequency. This IC has a 6-XFDFN exposed pad package and can provide a gain of 20dB.

  • Frequency: GPS 1575.42MHz
  • Package: 6-XFDFN exposed pad
  • Gain: 20dB
  • Isolation Voltage: 3750Vrms
  • ECCN: 7A994
  • Product Status: obsolete
  • Popularity: high
  • Supply and Demand Status: balanced
