ON Semiconductor FOD8321 High-Speed MOSFET Gate Drive Optocoupler

The FOD8321 from ON Semiconductor is a high-performance, integrated gate drive optocoupler designed to meet the stringent requirements of driving power MOSFETs and IGBTs. This advanced device combines a high-speed LED and an integrated high-gain photo detector that provides exceptional electrical isolation between the input and output sides, making it an ideal solution for various high-power switching applications.

The FOD8321 is capable of delivering a peak output current of 2.5A, which is essential for charging and discharging the gates of MOSFETs and IGBTs efficiently, thus ensuring minimal switching losses and improved overall performance. This robust optocoupler operates over a wide supply voltage range from 15V to 30V, providing designers with flexibility in various circuit configurations.

With a high common mode rejection (CMR) of 35kV/µs at a VCM of 1500V, the FOD8321 ensures reliable operation in noisy environments, where electrical noise could otherwise cause malfunctions. This feature is particularly important in industrial applications where high voltage transients are common.

Engineered with safety in mind, the FOD8321 offers reinforced insulation with a withstand voltage of 5kV RMS for 1 minute, complying with UL1577 regulatory standards. This ensures that the optocoupler can handle potential voltage spikes without compromising the isolation between the input and output.

The FOD8321 also boasts a propagation delay time of 500ns maximum, contributing to the fast response times required for high-speed switching. Its tight propagation delay skew of ±100ns enables precise timing control, which is vital for applications requiring synchronous switching performance.

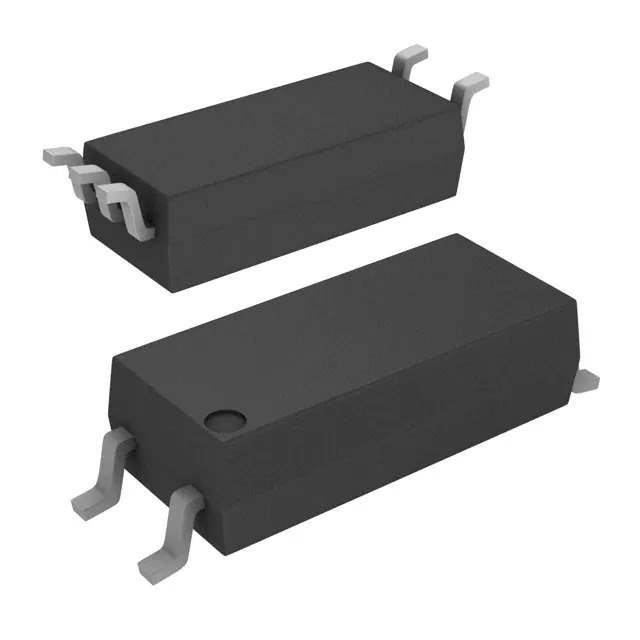

Available in a compact 8-pin DIP or 5-pin surface mount SMD package, the FOD8321 is suitable for use in a wide range of applications, including motor drives, power inverters, and switching power supplies where efficient and reliable gate driving is crucial.

Overall, the FOD8321 from ON Semiconductor is a highly reliable and efficient solution for designers looking to enhance their power management systems with a gate drive optocoupler that delivers both performance and durability.
