Products specifications

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr ON Semiconductor
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 950 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 50 ns
Current - Reverse Leakage @ Vr 5 µA @ 100 V
Capacitance @ Vr, F 70pF @ 4V, 1MHz
Mounting Type Through Hole
Package / Case DO-204AC, DO-15, Axial
Supplier Device Package DO-15
Operating Temperature - Junction -65°C ~ 150°C
Base Product Number EGP20
Standard Package 4,000 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 588407-EGP20B
Ultra Librarian 3D Model Ultra Librarian EGP20B CAD Model

Description

The EGP20B, from ON Semiconductor, is a high-performance fast recovery rectifier designed to meet the stringent requirements of today's electronic industry. This rectifier is ideal for use in power supplies, inverters, converters, freewheeling diodes, and other applications where fast switching is crucial.

Key Features

  • Voltage Rating: The EGP20B boasts a repetitive peak reverse voltage (V<sub>RRM) of 100V, making it suitable for a wide range of applications.
  • Current Capabilities: With an average forward rectified current (I<sub>F(AV)) of 2.0A, this device can handle moderate power requirements efficiently.
  • Fast Recovery Time: The device offers a quick recovery time of 150ns, which minimizes power loss and improves overall efficiency.
  • High Surge Capacity: It can withstand high surge currents, providing reliable performance under stress conditions.
  • Low Forward Voltage Drop: The low forward voltage drop (V<sub>F) reduces power dissipation and improves thermal performance.
  • Temperature Range: The EGP20B operates within a junction temperature range of -55°C to +150°C, ensuring stability across various environmental conditions.

Package and Compliance

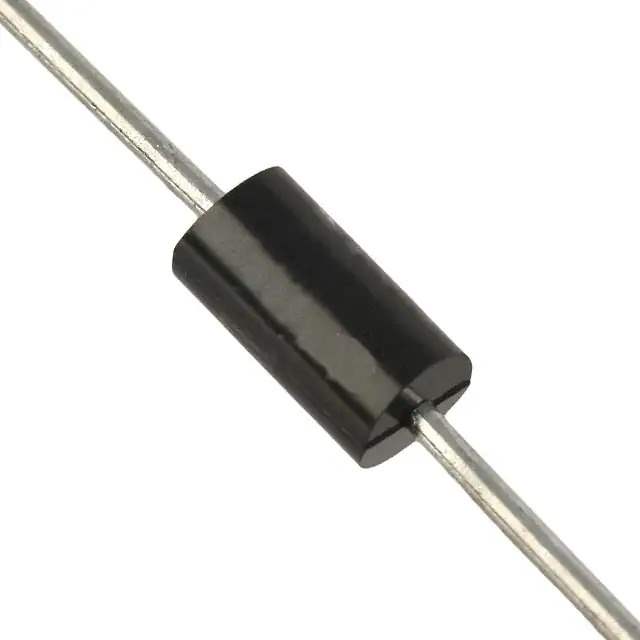

The EGP20B rectifier is housed in an axial lead package, which facilitates easy installation and is compatible with various PCB designs. The product is also RoHS compliant, adhering to environmental standards that restrict the use of hazardous substances in electronic equipment.

Applications

With its robust design and fast recovery time, the EGP20B is suitable for a variety of applications, including:

  • Switching power supplies
  • Automotive systems
  • Power management systems
  • Consumer electronics
  • Industrial equipment

In summary, the EGP20B from ON Semiconductor is a reliable and efficient solution for designers looking to enhance the performance of their power management systems with fast recovery diodes. Its combination of high voltage rating, fast switching capabilities, and compliance with environmental standards makes it a versatile choice for a wide array of electronic applications.
