Products specifications Report Issue?

Manufacturer onsemi
Category Discrete Semiconductor Products Diodes Rectifiers Single Diodes
Packaging  Tape & Reel (TR)
Part Status Obsolete
Technology Standard
Voltage - DC Reverse (Vr) (Max) 200 V
Voltage - Forward (Vf) (Max) @ If 1 V @ 1 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 µA @ 200 V
Operating Temperature - Junction 150°C (Max)
Mounting Type Through Hole
Win Source Part Number WS1307110-DSF10TC-BT
Ultra Librarian 3D Model Ultra Librarian DSF10TC-BT CAD Model

Description

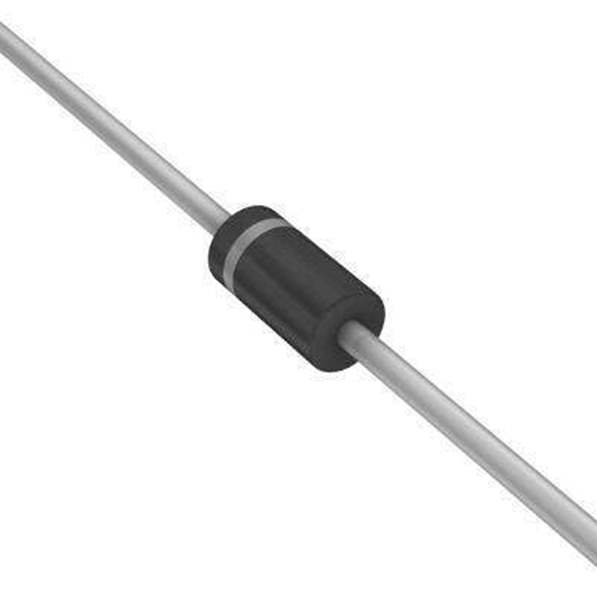

Diode 200 V 1A Through Hole
