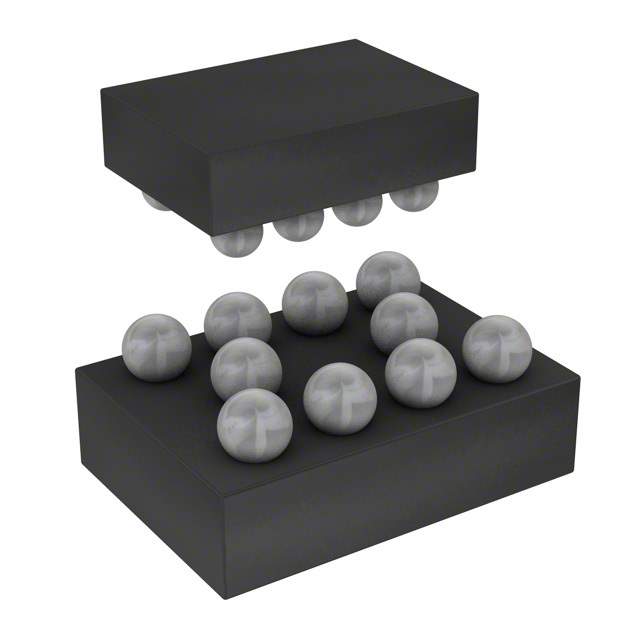

The CM1453-04CP from ON Semiconductor is a cutting-edge ESD Protection Device designed to safeguard high-speed data lines from electrostatic discharge (ESD) and other transient voltage events. This product is a perfect solution for applications requiring high levels of circuit protection, such as portable electronics, computer interfaces, and telecommunication devices.

Key Features

• ESD Protection: The CM1453-04CP offers robust ESD protection, capable of withstanding ESD events up to ±15kV (Air Gap Discharge) and ±8kV (Contact Discharge) as per the IEC 61000-4-2 standard.
• Low Capacitance: With a low loading capacitance of just 0.6pF per I/O, this device is ideal for protecting high-speed data lines without compromising signal integrity.
• Multiple Channels: The device features four channels of ESD protection, making it suitable for safeguarding multiple data lines with a single component.
• Low Clamping Voltage: Its low clamping voltage ensures that sensitive circuitry is well protected from transient voltages that could cause damage.
• Small Package Size: The CM1453-04CP comes in a compact SC-70 package, which is ideal for space-constrained applications.

Applications

The CM1453-04CP is versatile and can be used in a wide range of applications. Its primary use is to protect sensitive electronic circuits found in:

• Smartphones and other portable devices
• USB interfaces and peripherals
• Computer and laptop ports
• High-speed data lines and LAN/WAN equipment
• Consumer electronics

Quality and Reliability

ON Semiconductor is renowned for its commitment to quality and reliability, and the CM1453-04CP is no exception. Customers can trust this product to provide consistent, long-lasting protection for their electronic devices. With its advanced features and proven performance, the CM1453-04CP stands out as a top choice for ESD protection solutions.

For detailed specifications and application notes, or to request samples, please visit the ON Semiconductor website or contact your local sales representative.
