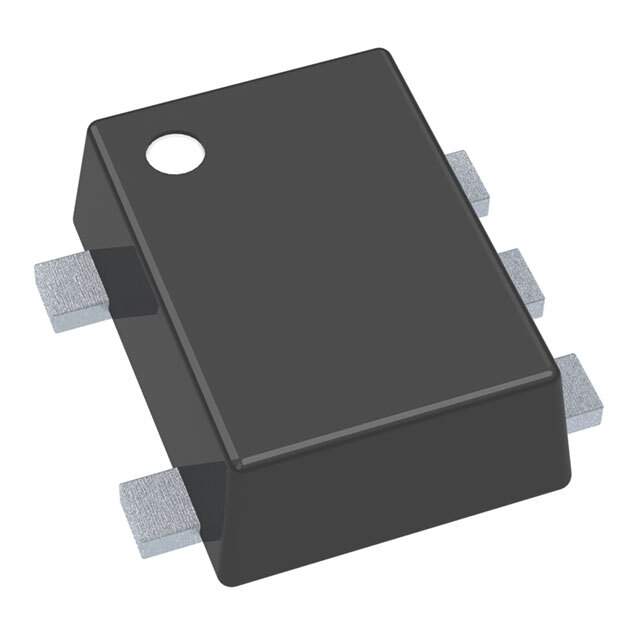

The CM1263-02SE from ON Semiconductor is a robust ESD protection device designed to safeguard high-speed data lines from electrostatic discharge (ESD) and other voltage-induced transient events. This compact and efficient component is essential for maintaining the integrity and longevity of sensitive electronic circuits found in a wide range of applications, including consumer electronics, communication systems, and industrial equipment.

Key Features

• ESD Protection: The CM1263-02SE provides exceptional protection against ESD, capable of withstanding ESD strikes up to ±15kV contact discharge and ±30kV air discharge as per the IEC 61000-4-2 international standard.
• Low Capacitance: With a low loading capacitance of just 0.6pF per I/O, this device is particularly suitable for protecting high-speed data lines without compromising signal integrity.
• Bi-directional Protection: The device offers bi-directional ESD protection, ensuring that both lines are equally protected from transient voltage spikes.
• Small Package: Housed in a small SOT-23 package, the CM1263-02SE is ideal for space-constrained applications, offering ESD protection in a minimal footprint.

Applications

The CM1263-02SE is versatile and can be used in a variety of applications where data line protection is crucial. Some of these applications include:

• USB interfaces
• HDMI and DisplayPort interfaces
• Digital Visual Interface (DVI) applications
• Mobile handsets and portable electronics
• Notebook computers

Product Specifications

The CM1263-02SE is characterized by its superior electrical properties and performance specifications:

• Operating Voltage Range: 0 to 5.5V
• ESD Protection: ±15kV contact, ±30kV air (IEC 61000-4-2)
• Low Leakage Current: Less than 1µA at 5V
• Response Time: <1ns, ensuring quick protection against fast transients
• RoHS Compliant: Yes, meeting environmental and regulatory standards

With its combination of high ESD protection, low capacitance, and compact form factor, the CM1263-02SE from ON Semiconductor is an excellent choice for designers seeking to enhance the durability and performance of their electronic products.
