ON Semiconductor CAT3604HV4-T2 LED Driver IC

The CAT3604HV4-T2 from ON Semiconductor is a high-efficiency, charge pump-based LED driver IC designed for powering multiple LEDs in portable devices. It is an ideal solution for applications requiring uniform brightness and extended battery life, such as mobile phones, personal media players, and handheld gaming devices.

This LED driver IC can drive up to four LEDs with a constant current for uniform brightness, ensuring a consistent user experience. The CAT3604HV4-T2 operates with a wide input voltage range from 3V to 5.5V, making it versatile for various battery configurations and able to maintain consistent light output despite varying power supply conditions.

The device features a high 1MHz fixed switching frequency that allows for the use of small external components, reducing the overall solution footprint on the PCB. Additionally, it includes built-in thermal protection and automatic soft-start to limit inrush current, enhancing the reliability and longevity of the product.

ON Semiconductor's CAT3604HV4-T2 provides a high efficiency of up to 92%, which is crucial for battery-operated devices as it helps to maximize battery life. It also includes a low-power shutdown mode, further conserving energy when the LEDs are not in use.

The device's four LED current sinks are programmable via an external resistor, allowing designers to set the optimal current for their specific LED configuration. This feature also simplifies the design process, as it enables the use of different types of LEDs without the need for significant circuit changes.

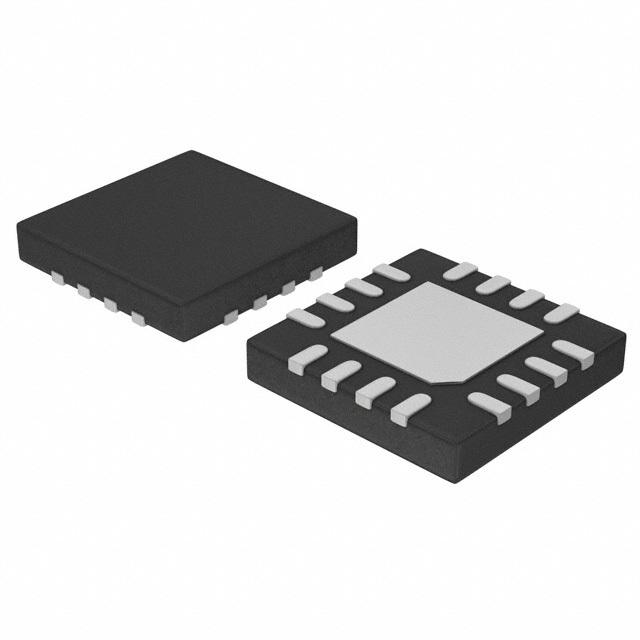

Packaged in a compact, 16-lead TQFN package, the CAT3604HV4-T2 is designed to minimize space on the PCB, making it an excellent choice for space-constrained applications. Its robust design and ON Semiconductor's commitment to quality make this LED driver a reliable and efficient solution for driving multiple LEDs in a variety of portable electronic devices.
