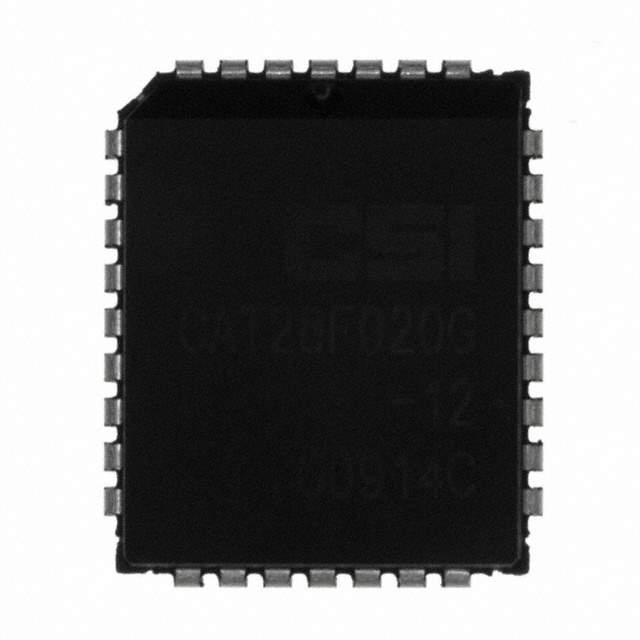

ON Semiconductor CAT28F001G-12BT Flash Memory

The ON Semiconductor CAT28F001G-12BT is a high-performance 1-megabit Flash memory component that combines quality, reliability, and speed, making it an excellent choice for a wide range of applications in the electronics industry. This non-volatile memory chip is designed to deliver both the endurance and data retention needed for critical data storage. It operates at a 12ns access time, which allows for swift read operations, thus enhancing the performance of the systems it integrates with.

With an organized memory array of 128K x 8, the CAT28F001G-12BT provides a substantial amount of storage capacity for firmware, boot code, and program data storage. It is designed for easy integration into a variety of systems with its industry-standard JEDEC-approved pinout, which ensures compatibility with existing circuit designs and simplifies the design process for engineers.

The device features a single 5-volt power supply, which simplifies the power design in embedded applications. It also boasts a low power consumption, making it suitable for portable and battery-powered devices where energy efficiency is paramount. The CAT28F001G-12BT supports sector erase and program operations, allowing for flexible data management and updates without the need to erase the entire chip, which can be time-consuming and inefficient.

For programming ease and protection, the device includes hardware and software data protection schemes. The hardware protection involves a write protect pin that prevents accidental data alteration, while the software data protection uses a series of algorithmic commands to safeguard against inadvertent programming. These features are crucial in maintaining the integrity of the data stored within the memory chip.

ON Semiconductor's commitment to quality is evident in the CAT28F001G-12BT Flash memory, as it is designed to endure at least 100,000 program/erase cycles and offers a data retention of a minimum of 100 years. This durability and reliability make it a trusted choice for applications that require long-term data storage without the need for frequent updates.

In conclusion, the CAT28F001G-12BT from ON Semiconductor is a robust, reliable, and efficient Flash memory solution that meets the needs of a broad spectrum of data storage applications. Its combination of speed, capacity, and protection features make it an ideal choice for designers looking to incorporate a dependable memory component into their electronic designs.
