ON Semiconductor 74LCX00BQX Low Voltage Quad 2-Input NAND Gate

The 74LCX00BQX is a high-performance, low-voltage quad 2-input NAND gate integrated circuit brought to you by ON Semiconductor, a trusted leader in innovative semiconductor solutions. This device is designed to operate with a 2.0 to 3.6 V power supply, making it ideal for interfacing with 3.3 V logic devices. It is part of the LCX family, which is renowned for its low power consumption and high-speed operation.

Constructed with advanced silicon gate CMOS technology, the 74LCX00BQX offers superior signal quality and noise immunity, typical of CMOS devices, but with speeds comparable to LSTTL gates. This makes the 74LCX00BQX an excellent choice for a wide range of applications, including high-speed data processing, communication systems, and complex logic circuit designs.

The 74LCX00BQX features a 5V tolerant input, which allows for direct interfacing with 5V TTL logic without the need for additional level shifting. This feature simplifies system design and enhances flexibility by allowing the device to be used in mixed-voltage environments. Moreover, the input and output structures support live insertion and withdrawal, minimizing device damage during hot plugging.

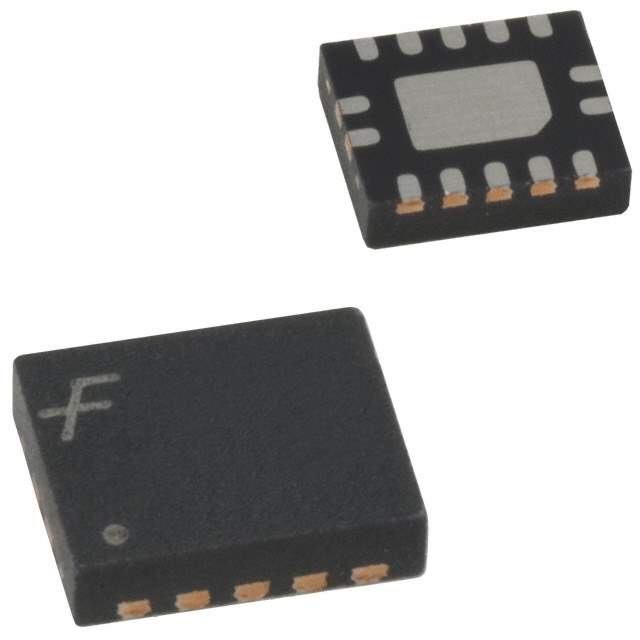

ON Semiconductor's commitment to environmental sustainability is evident in the 74LCX00BQX, as it is available in a lead-free, space-saving 14-pin DQFN package. This package is not only compact but also offers excellent thermal performance, ensuring reliable operation even in thermally challenging environments.

The device also boasts an impressive propagation delay (tpd) of only 2.5 ns at 3.3V, contributing to its high-speed credentials. Furthermore, the 74LCX00BQX is fully specified for partial power-down applications using IOFF, which ensures that the output is disabled and maintains high impedance, preventing damaging backflow current through the device.

In summary, the 74LCX00BQX from ON Semiconductor is a high-quality, versatile component that provides the necessary features for modern electronic systems that require low-voltage operation, high-speed performance, and 5V tolerant interfaces. Its robust design and environmental consideration make it a smart choice for designers looking to create efficient, reliable, and eco-friendly products.
