ON Semiconductor 2N6045 Bipolar Power Transistor

The 2N6045 from ON Semiconductor is a robust bipolar power transistor designed to handle high-power applications with efficiency and reliability. This device is part of ON Semiconductor's extensive range of power transistors, which are widely recognized for their quality and performance across various industries.

Key Features:

• Type: NPN
• Collector-Emitter Voltage (VCEO): 60V
• Collector Current (IC): 8A
• Total Power Dissipation (Ptot): 75W
• Operating Junction Temperature Range (TJ): -65°C to +150°C
• Package: TO-220

The 2N6045 is built to handle a continuous collector current of up to 8 amperes, with a collector-emitter voltage rating of 60V, making it suitable for moderate voltage applications. The total power dissipation capability of this transistor is 75 watts, which allows it to manage significant power levels without compromising the integrity of the device.

One of the outstanding features of the 2N6045 is its wide operating junction temperature range, which spans from -65°C to +150°C. This wide temperature range ensures that the transistor can perform reliably in various environmental conditions, making it an excellent choice for industrial and commercial applications that demand consistent performance.

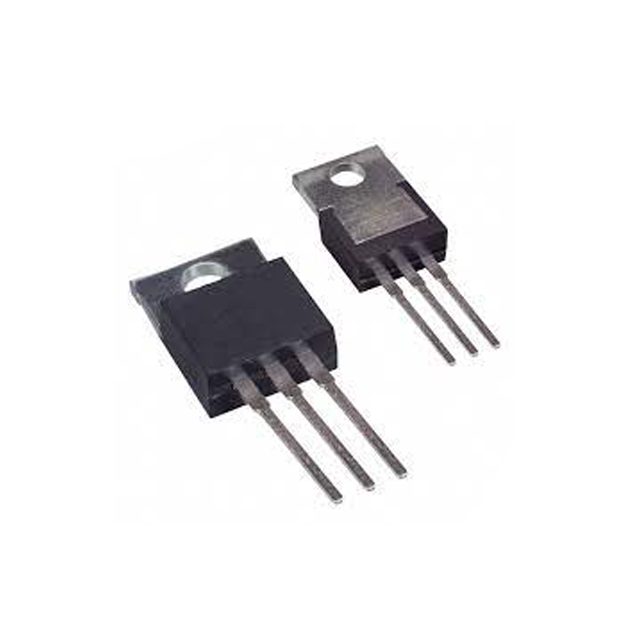

The transistor comes in a TO-220 package, which is a widely used and easily mountable form factor. The TO-220 package provides a good balance of thermal performance and size, making it suitable for applications where space and heat dissipation are considerations.

Applications of the 2N6045 include, but are not limited to, power regulators, DC-DC converters, motor controllers, and general-purpose amplifiers. Its robustness and reliability make it a preferred choice for designers and engineers looking for a high-performance power transistor for their demanding applications.

ON Semiconductor's commitment to quality ensures that the 2N6045, like all their products, meets the highest standards of performance and durability. Whether for prototyping or mass production, the 2N6045 is a component that can be relied upon for consistent operation and longevity.
