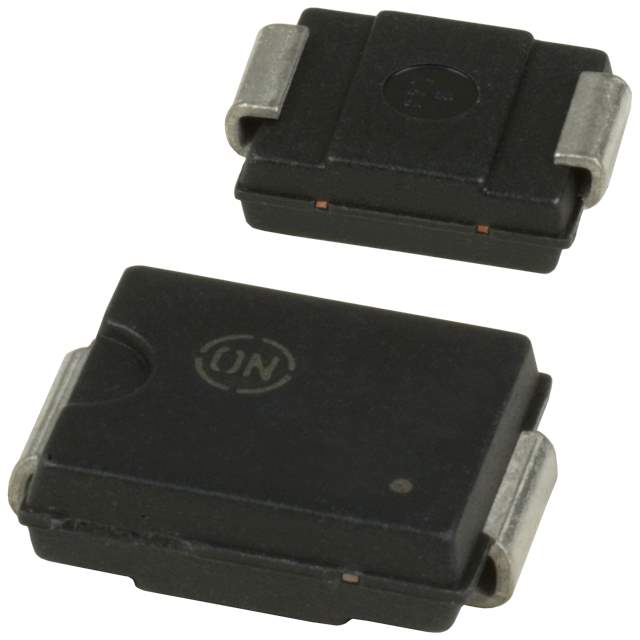

ON Semiconductor 1SMC70AT3G TVS Diode

The 1SMC70AT3G is a robust Transient Voltage Suppressor (TVS) diode designed by ON Semiconductor, a leading figure in the semiconductor industry known for its high-quality electronic components. This device is engineered to protect sensitive electronic equipment from voltage transients induced by system inductance, lightning, and electrostatic discharge (ESD), making it an essential component for safeguarding a wide range of applications.

Key Features

• Voltage Range: The device offers a stand-off voltage of 70V, which is suitable for a variety of electronic circuits that require protection against high transient voltages.
• High Surge Capability: With its peak pulse power dissipation of 1500W (10/1000μs waveform), the 1SMC70AT3G can effectively handle significant surge events, ensuring reliable performance and longevity of the protected device.
• Fast Response Time: Its fast response time to transient events ensures that the sensitive components are shielded promptly, minimizing the risk of damage.
• Low Incremental Surge Resistance: The diode features a low incremental surge resistance, which enhances its ability to suppress transients without a significant increase in voltage.
• Compact Package: The 1SMC70AT3G comes in the industry-standard SMC package, which is known for its compact footprint and ease of PCB layout.
• Environmental Compliance: It is compliant with RoHS and Halogen-Free standards, making it a suitable choice for environmentally conscious applications.

Applications

The versatility of the 1SMC70AT3G makes it an ideal choice for a broad spectrum of applications. It is commonly found in:

• Consumer electronics such as TVs, computers, and gaming consoles
• Communication systems, including mobile phones and networking devices
• Industrial control equipment
• Automotive electronics, where reliability under harsh conditions is paramount
• Portable devices that require a high level of protection against transient voltages

With its combination of high surge protection, fast response time, and environmental compliance, the ON Semiconductor 1SMC70AT3G TVS diode is a trusted and valuable component for designers looking to enhance the durability and reliability of their electronic systems.
