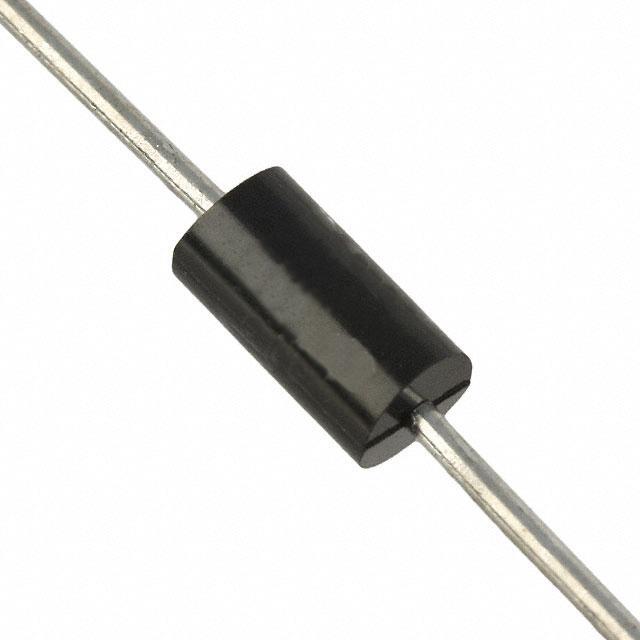

The 1N5393 is a high-quality general-purpose silicon rectifier designed and manufactured by ON Semiconductor, a trusted leader in semiconductor solutions. This rectifier diode is widely used in a variety of electronic applications due to its reliability, efficiency, and cost-effectiveness.

Key Features

• High Current Capability: The 1N5393 is capable of handling a high forward current of 1.5 amperes, making it suitable for a wide range of applications that require robust current handling capabilities.
• High Surge Current Capability: With its ability to withstand surge currents, this diode ensures protection against sudden spikes in current, enhancing the longevity and reliability of the electronic device it is used in.
• Low Forward Voltage Drop: The diode's low forward voltage drop minimizes power loss and improves efficiency, which is essential for energy-sensitive applications.
• Versatile Operating Conditions: The 1N5393 can operate effectively over a wide temperature range, making it suitable for use in various environmental conditions.

Electrical Characteristics

The 1N5393 has a repetitive peak reverse voltage (V<sub>RRM) of 200 volts, which ensures that it can block high reverse voltages without damage. Its maximum forward voltage (V<sub>F) is specified at 1.2 volts when conducting 1.5 amperes, indicating its efficiency in conducting current with minimal voltage loss.

Applications

This rectifier is suitable for use in a variety of applications, including:

• Power supply units
• Consumer electronics
• Automotive applications
• Industrial equipment
• Telecommunication systems

Quality and Reliability

ON Semiconductor is committed to delivering products that meet the highest standards of quality and reliability. The 1N5393 rectifier is no exception, with its construction designed to ensure long-term stability and performance under demanding conditions. With ON Semiconductor's expertise and dedication to excellence, customers can trust the 1N5393 to perform consistently and effectively in their electronic applications.
