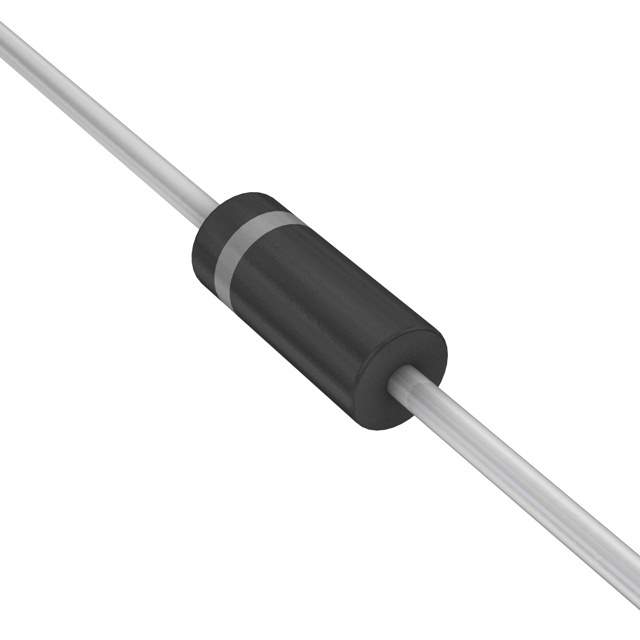

1N5339BG

Part No 1N5339BG
Manufacturer ON Semiconductor
Catalog Diodes - Zener - Single
Description DIODE ZENER 5.6V 5W AXIAL
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Bulk
Voltage - Zener (Nom) (Vz) 5.6V
Tolerance ±5%
Power - Max 5W
Impedance (Maximum) (Zzt) 1 Ohm
Current - Reverse Leakage @ Vr 1μA @ 2V
Voltage - Forward (Vf) (Maximum) @ If 1.2V @ 1A
Operating Temperature Range -65°C ~ 200°C
Mounting Style Through Hole
Package T-18, Axial
Manufacturer Package Axial
Win Source Part Number 761090-1N5339BG
Popularity Medium
Supply and Demand Status Limited
Family Name 1N5339B
Introduction Date July 08, 2005
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian 1N5339BG CAD Model

Description

ON Semiconductor 1N5339BG Zener Diode

The 1N5339BG is a robust Zener diode from the reputable manufacturer ON Semiconductor, designed to provide precise voltage regulation. This Zener diode offers a 5.6V nominal Zener voltage with a tolerance of ±5%, making it an ideal choice for a variety of electronic circuits that require a stable reference voltage.

Constructed with high-quality materials, the 1N5339BG has a power dissipation rating of 5 watts, which allows it to handle significant power levels while maintaining its voltage regulation capabilities. This makes it suitable for use in power supply circuits, voltage stabilization systems, and as a protective device against overvoltage conditions.

The diode comes in a DO-201AE package, also known as an axial-lead, through-hole package, which ensures easy mounting on printed circuit boards (PCBs) for a wide range of applications. Its lead-free and RoHS compliant design aligns with environmental standards, making it a responsible choice for modern electronic devices.

Key features of the 1N5339BG include:

  • Nominal Zener Voltage: 5.6V
  • Tolerance: ±5% for precise voltage regulation
  • Power Dissipation: 5W, capable of handling significant power
  • Package: DO-201AE for easy PCB mounting
  • Lead-Free and RoHS Compliant: Environmentally friendly construction

With its high reliability and performance, the 1N5339BG is widely used in a variety of applications, including consumer electronics, industrial hardware, and telecommunications systems. Its ability to maintain a stable Zener voltage under a range of operating conditions ensures that it remains a preferred choice for designers and engineers looking for a dependable voltage regulation solution.

Whether you're developing a new project or replacing a component in an existing circuit, the ON Semiconductor 1N5339BG Zener diode is a solid choice that combines quality, efficiency, and environmental consciousness in one compact package.
