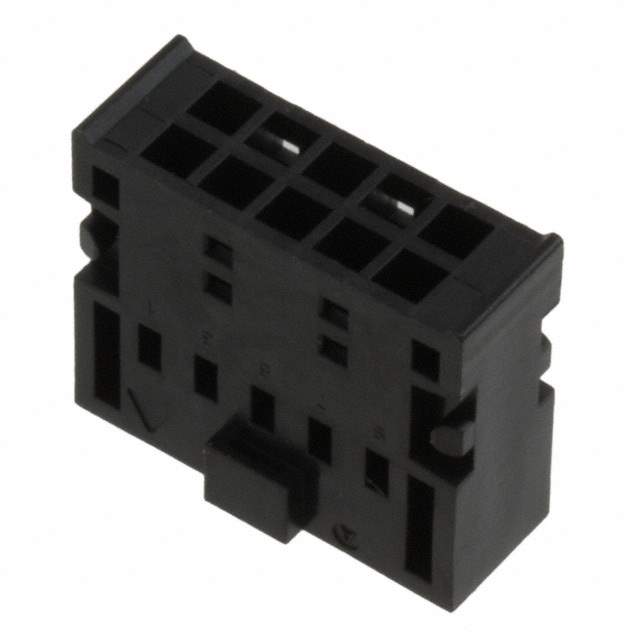

XG5N-101 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr Omron Electronics Inc-EMC Div
Series XG5N
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 10
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Color Black
Note Contacts Not Included
Base Product Number XG5N
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Other Names XG5N101,OR1134
Standard Package 100
Win Source Part Number 1178630-XG5N-101
Ultra Librarian 3D Model Ultra Librarian XG5N-101 CAD Model

Description

The XG5N from Omron is a rectangular connector housing with 10 positions and a 0.100" (2.54mm) pitch.

  • Connector Type: Receptacle
  • Contact Gender: Female Socket
  • Color: Black
  • Mounting Type: Free Hanging (In-Line)
  • Temperature Range: -30°C ~ 85°C
  • Package: Bulk
