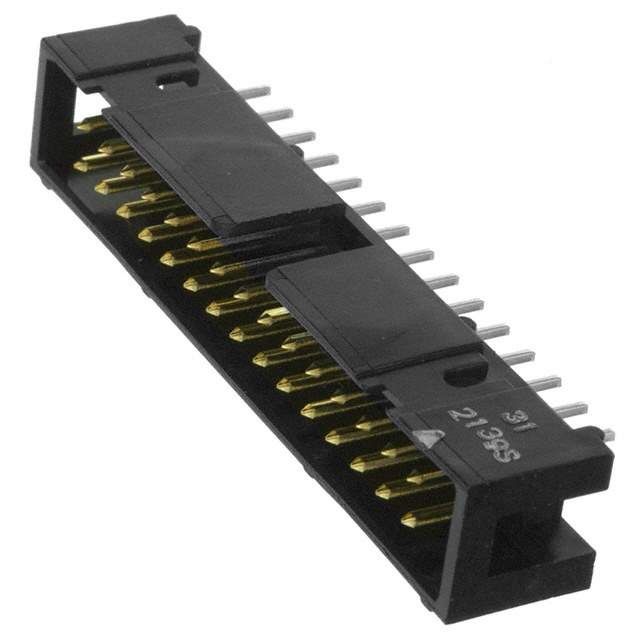

XG4C3031BYOMZ Real Image
Same model may have multiple batches, images only for reference.

XG4C3031BYOMZ

Part No XG4C3031BYOMZ
Manufacturer Omron
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Omron Electronics Inc-EMC Div
Series XG4
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 30
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.480" (12.19mm)
Insulation Height 0.335" (8.51mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 5.90µin (0.150µm)
Contact Finish - Post Tin
Contact Material Brass, Nickel
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Keying Slot
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 300V
Mated Stacking Heights 10.1mm, 19mm, 20.2mm
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number XG4C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1314680-XG4C3031BYOMZ
Ultra Librarian 3D Model Ultra Librarian XG4C3031BYOMZ CAD Model

Description

The Omron XG4C3031BYOMZ is a rectangular connector header with male pins that is ideal for a wide range of applications.

  • Manufacturer: Omron
  • Connector Type: Header
  • Shape: Rectangular
  • Pin Gender: Male
  • Features: Keying Slot
  • Style: Board-to-Board or Cable
  • Number of Positions: 30
  • Number of Rows: 2
  • Voltage Rating: 300V
  • Current Rating: 3A
  • Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Design: Shrouded - 4 Wall
  • Mounting Type: Through Hole
  • Temperature Range: -55°C to 105°C
  • Pitch-Mating: 0.100" (2.54mm)
  • Flammability Rating: UL94 V-0
