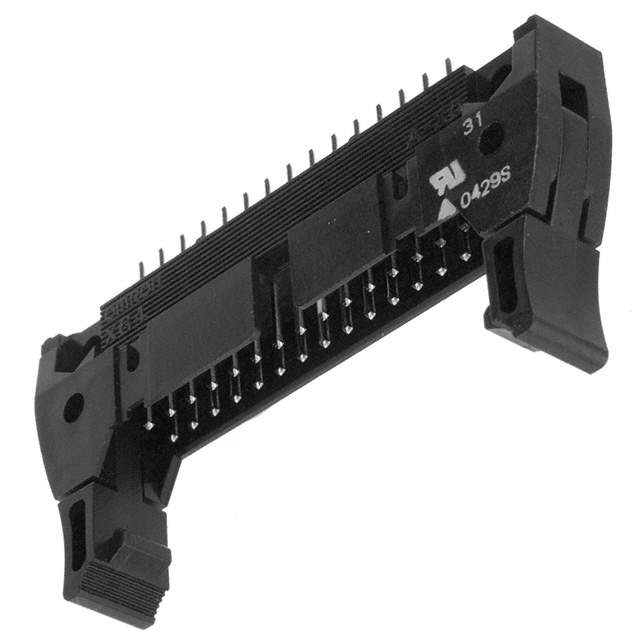

XG4A-3031 Real Image
Same model may have multiple batches, images only for reference.

XG4A-3031

Part No XG4A-3031
Manufacturer Omron
Catalog Rectangular Connectors
Description CONN HEADER VERT 30POS 2.54MM / Connector Header Through Hole 30 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Omron Electronics Inc-EMC Div
Series XG4
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 30
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.657" (16.70mm)
Insulation Height 0.669" (17.00mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 5.90µin (0.150µm)
Contact Finish - Post Tin
Contact Material Brass, Nickel
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 300V
Mated Stacking Heights 23.5mm
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number XG4A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names XG4A3031BYOMZ,XG4A3031-ND,OR888,XG4A3031,XG4A-3031 BY OMZ
Standard Package 50
Win Source Part Number 1178615-XG4A-3031
Ultra Librarian 3D Model Ultra Librarian XG4A-3031 CAD Model

Description

The Omron XG4A-3031 is a male pin header connector with 30 positions and 2 rows.

  • Positions: 30
  • Rows: 2
  • Mounting Flange: Yes
  • Keying Slot: Yes
  • Contact Finish: Gold
  • Connector Type: Header
  • Contact Type: Male Pin
  • Shrouding: Shrouded-4 Wall
  • Mounting Type: Through-Hole
  • Voltage Rating: 300V
  • Current Rating: 3A
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Length-Post: 0.126" (3.20mm)
  • Win Source Part Number: 1178615-XG4A-3031
