Same model may have multiple batches, images only for reference.

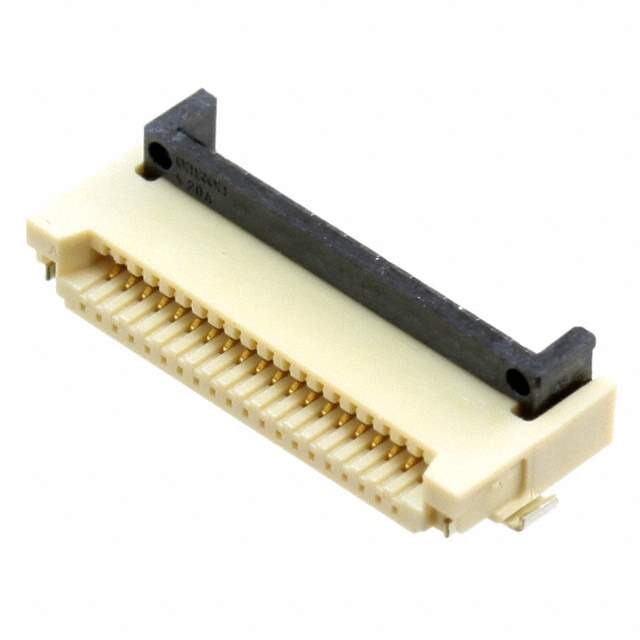

XF3M-2015-1B Real Image
Same model may have multiple batches, images only for reference.

XF3M-2015-1B

Part No XF3M-2015-1B
Manufacturer Omron
Catalog Flat Flex Cables (FFC, FPC)
Datasheet
XF3M-2015-1B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Omron Electronics Inc-EMC Div
Series XF3M
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 20
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Features Solder Retention
Voltage Rating 50V
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness Flash
Housing Color Natural
Actuator Color Black
Mating Cycles 20
Base Product Number XF3M
Other Names 2266-XF3M-2015-1B,OR1182DKR,XF3M20151B,XF3M20151BBYOMZ,OR1182CT,XF3M-2015-1B BY OMZ,OR1182TR
Standard Package 1,500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1294080-XF3M-2015-1B
Ultra Librarian 3D Model Ultra Librarian XF3M-2015-1B CAD Model

Description

The XF3M-2015-1B electronic component with Win Source Part Number 1294080-XF3M-2015-1B is a connector that falls under the category of Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors.

  • Series: XF3M
  • Positions: 20
  • Pitch: 0.020" (0.50mm)
