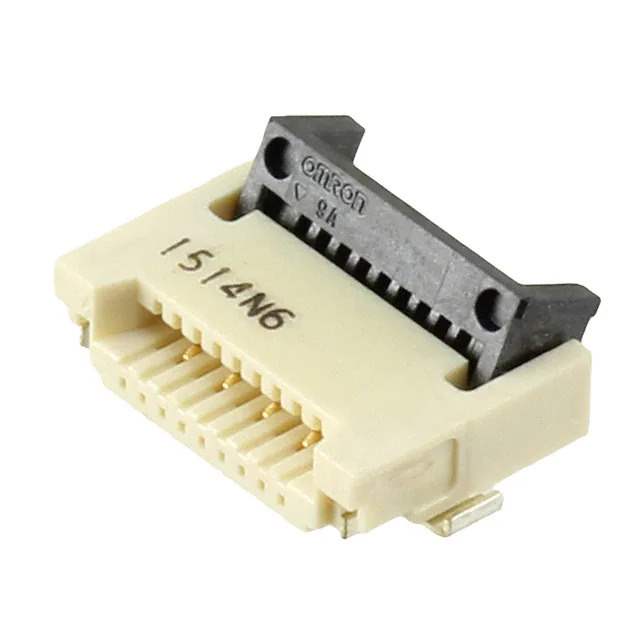

XF3M(1)-0415-1B Real Image
Same model may have multiple batches, images only for reference.

XF3M(1)-0415-1B

Part No XF3M(1)-0415-1B
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC 4POS 1MM R/A / 4 Position FFC, FPC Connector Contacts, Top and Bottom 0.039" (1.00mm) Surface Mount, Right Angle
Datasheet
XF3M(1)-0415-1B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Omron
Series XF3M
Package Tape & Reel
Product Status Active
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 4
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Features Solder Retention
Voltage Rating 50V
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness Flash
Housing Color Natural
Actuator Color Black
Mating Cycles 20
Base Product Number XF3M
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 849029-XF3M(1)-0415-1B
Ultra Librarian 3D Model Ultra Librarian XF3M(1)-0415-1B CAD Model

Description

The XF3M(1)-0415-1B is a 4-position FFC, FPC connector assembly from Omron. It is part of the XF3M series of flat flexible connectors and features a solder termination style.

  • Series: XF3M
  • Positions: 4
  • Termination Style: Solder
  • Pitch: 0.039" (1.00mm)
  • Mounting: Surface mount, right angle
  • Height Above Board: 0.079" (2.00mm)
  • Voltage Rating: 50V
  • Contact Material: Copper alloy
  • Contact Finish: Gold
  • Housing Material: Liquid crystal polymer (LCP)
  • Packaging: Tape & reel
  • Pieces per Package: 1,500
