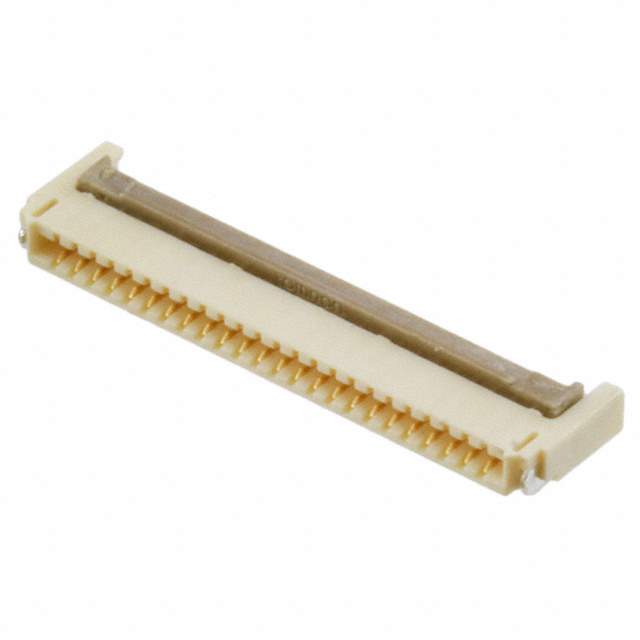

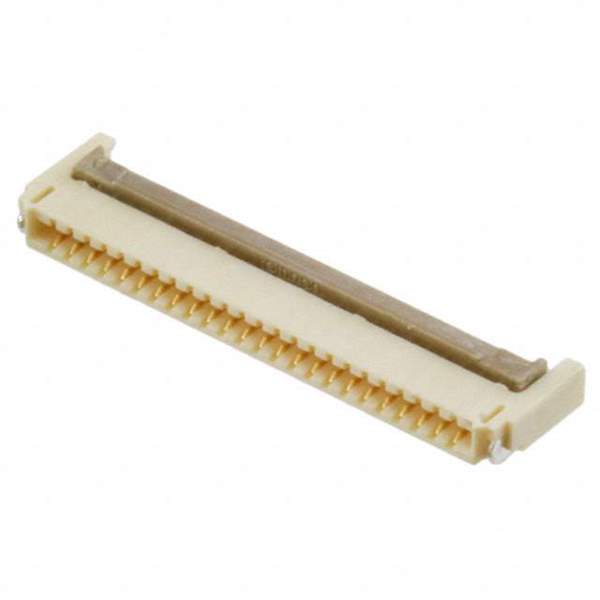

XF2W-2415-1A Real Image
Same model may have multiple batches, images only for reference.

XF2W-2415-1A

Part No XF2W-2415-1A
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 24POS 0.50MM R/A
Datasheet
XF2W-2415-1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Omron Electronics Inc-EMC Div
Packaging Reel - TR
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 24
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.044" (1.10mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating 50V
Temperature Range - Operating -30°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Contact Finish Thickness 5.9μin (0.15μm)
Housing Color Natural
Actuator Color Brown
Mating Cycles 20
Win Source Part Number 1119404-XF2W-2415-1A
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian XF2W-2415-1A CAD Model

Description

The Omron Electronics Inc-EMC Div XF2W-2415-1A is a 24-position FPC connector that has a pitch of 0.020" (0.50mm) and a voltage rating of 50V.

  • Manufacturer: Omron Electronics Inc-EMC Div
  • Connector Type: FPC Connector
  • Number of Positions: 24
  • Pitch: 0.020" (0.50mm)
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Height Above Board: 0.044" (1.10mm)
  • Locking Feature: Rotary Lock, Backlock
  • Mounting Type: Surface Mount, Right Angle
  • Housing Material: Liquid Crystal Polymer (LCP), Halogen-Free
  • Actuator Material: Unspecified
