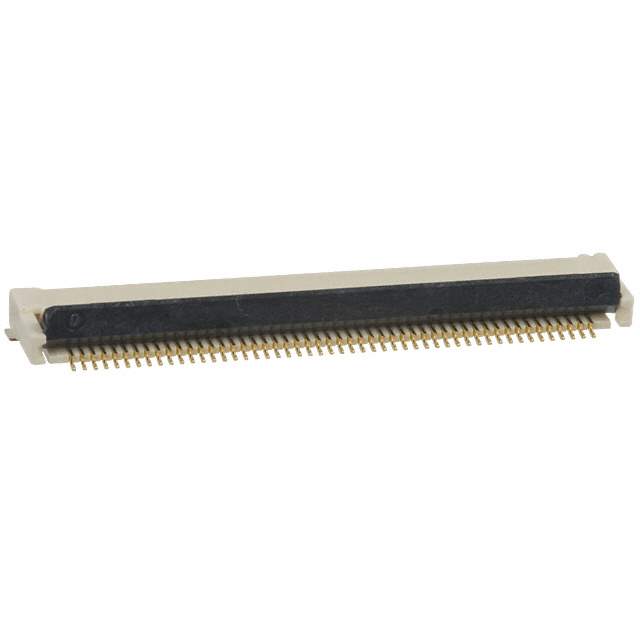

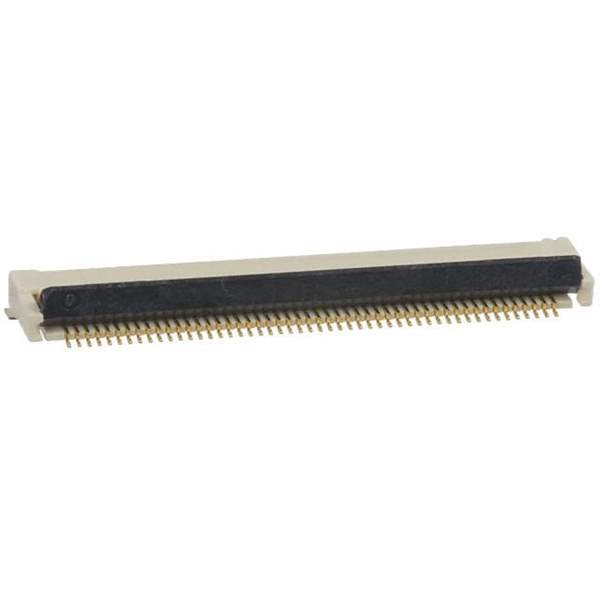

XF2M-5015-1A

Name: XF2M-5015-1A
Brand: Omron
SKU: 699410
Availability: InStock
Rating: 4.84 (49 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	XF2M-5015-1A
Manufacturer	Omron
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	Rotary Backlock Connector (0.5-mm pitch, Dual Contact) \| CONN FPC 50POS 0.50MM R/A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Omron Electronics Inc-EMC Div
Packaging	Reel
Flat Flex Type	FPC
Mounting Style	SMT, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	50
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.083" (2.10mm)
Locking Feature	Rotary Lock, Backlock
Cable End Type	Tapered
Contact Material	Copper Alloy
Contact Finish	Gold
Dielectric Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating	50V
Temperature Range - Operating	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Contact Finish Thickness	5.90μin (0.150μm)
Housing Color	Natural
Actuator Color	Black
Mating Cycles	20
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1282098-XF2M-5015-1A
Manufacturer Homepage	www.omron.com/index3.html
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian XF2M-5015-1A CAD Model

Description

The XF2M-5015-1A is a 50-position FPC connector manufactured by Omron Electronics Inc-EMC Div.

Positions: 50
Type: FPC connector
Pitch: 0.020" (0.50mm)
Voltage Rating: 50V
Current Rating: 0.5A
Contact Finish Thickness: 5.90μin (0.150μm)
Package: reel
Supply and Demand Status: limited
Locking Feature: rotary lock, backlock
Housing Color: natural
Mating Cycle: 20
Flammability Rating: UL94 V-0
