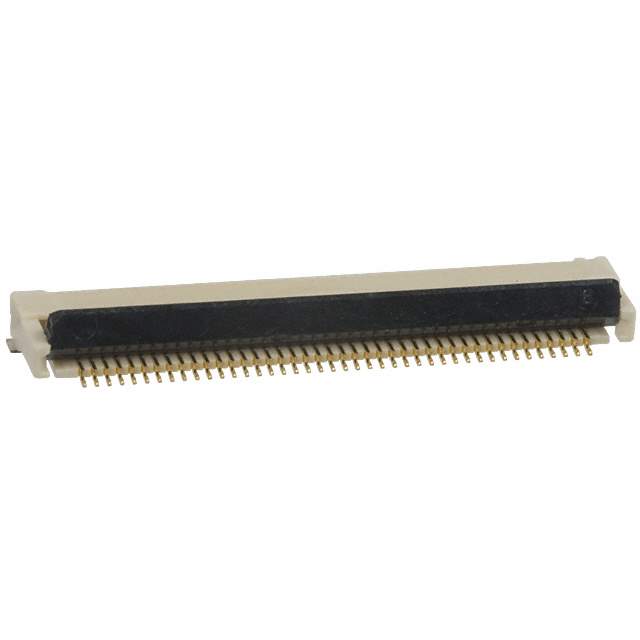

XF2M-4215-1A Real Image
Same model may have multiple batches, images only for reference.

XF2M-4215-1A

Part No XF2M-4215-1A
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 42POS 0.50MM R/A  /  42 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Omron Electronics Inc-EMC Div
Series XF2M
Package Tape & Reel
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 42
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.083" (2.10mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating 50V
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 5.90µin (0.150µm)
Housing Color Natural
Actuator Color Black
Mating Cycles 20
Base Product Number XF2M
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names OR730DKR,2266-XF2M-4215-1A,OR730TR,XF2M42151A,OR730CT
Standard Package 1,500
Win Source Part Number 988790-XF2M-4215-1A
Ultra Librarian 3D Model Ultra Librarian XF2M-4215-1A CAD Model

Description

The XF2M-4215-1A connector is a flat flexible cable (FFC) connector with 42 positions and a pitch of 0.020 inches (0.50mm).

  • Material: Liquid crystal polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Height Above Board: 0.083 inches (2.10mm)
  • Mounting: Surface-mount right-angle
  • Contact Material: Copper alloy with a gold finish
  • Mating Contact Finish Thickness: 5.90µin (0.150µm)
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Temperature Range: -30°C to 85°C
  • Features: Rotary lock and backlock
  • Cable End Type: Tapered
  • Package: Tape and reel
  • Standard Package: 1,500 pieces
