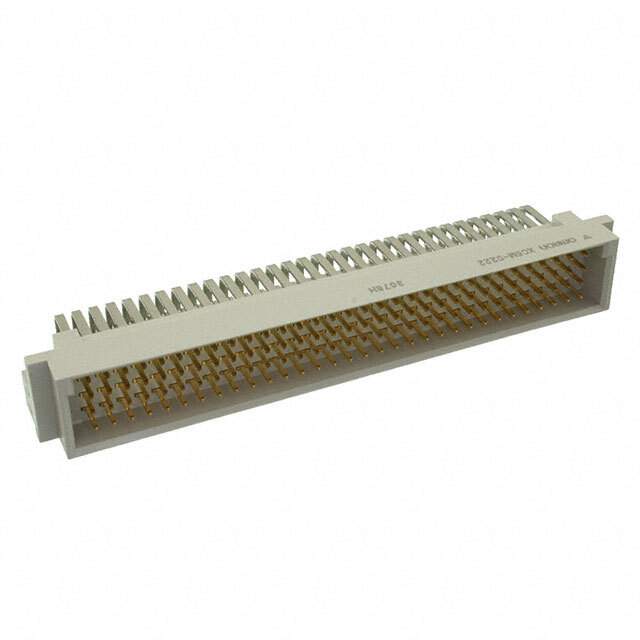

XC5M-0222 Real Image
Same model may have multiple batches, images only for reference.

XC5M-0222

Part No XC5M-0222
Manufacturer Omron
Catalog Backplane Connectors
Description CONN DIN PLUG 128POS PCB RA GOLD / 128 Position Din Connector Plug, Male Pins Gold Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr Omron Electronics Inc-EMC Div
Series XC5
Package Bulk
Connector Type Plug, Male Pins
Number of Positions 128
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 4
Mounting Type Through Hole, Right Angle
Termination Solder
Contact Finish Gold
Contact Finish Thickness 16.0µin (0.41µm)
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 2A
Material Flammability Rating UL94 V-0
Material - Insulation Polybutylene Terephthalate (PBT) , Glass Filled
Base Product Number XC5M
Standard Package 9
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1352027-XC5M-0222
Ultra Librarian 3D Model Ultra Librarian XC5M-0222 CAD Model

Description

The Omron XC5M-0222 is a connector with 128 positions and a pitch of 0.100" (2.54mm).

  • Positions: 128
  • Pitch: 0.100" (2.54mm)
  • Connector Type: Plug
  • Contact Gender: Male Pins
  • Positions Loaded: All
  • Number of Rows: Four
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 16.0µin (0.41µm)
  • Package: Bulk
  • Insulation Material: Polybutylene Terephthalate (PBT) and Glass-Filled
  • Material Flammability Rating: UL94 V-0
  • Standard Package: 9
  • Mounting Type: Through Hole, Right Angle
  • Operating Temperature: -55°C to 125°C
  • MSL Level: 1 (Unlimited)
  • Current Rating: 2A
  • HTSUS: 8536.69.4040
