TL4019-40242TM

Part No TL4019-40242TM
Manufacturer Omron
Catalog Interlock Switches
Description SWITCH SAFETY 4PST 4A 230V
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Interlock Switches
Mfr Omron
Series TL4019
Package Bulk
Product Status Active
Type Solenoid Locking
Circuit 4PST-3NC/1NO (DB/DM)
Current Rating (Amps) 4A (AC/DC)
Voltage Rating 230VAC, 24VDC
Voltage - Supply 24VAC/DC
Holding Force 122kgf
Actuator Type Panel Disconnect
Termination Style Screw Terminal
Conduit Thread Size M20 x3
Temperature Range - Operating -20°C ~ 55°C
Ingress Protection IP67 - Dust Tight, Waterproof
Approval Agency CE, cULus
Base Product Number TL4019
Standard Package 1 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9055
Win Source Part Number 1225797-TL4019-40242TM
Ultra Librarian 3D Model Ultra Librarian TL4019-40242TM CAD Model

Description

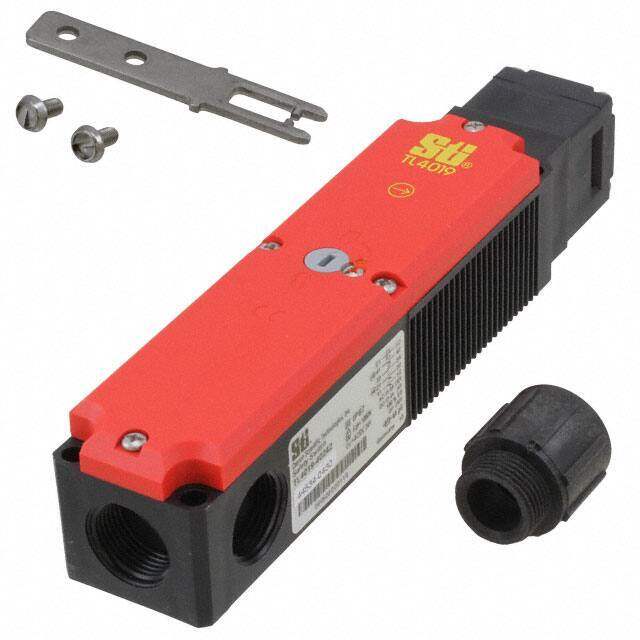

The TL4019-40242TM is a solenoid locking interlock switch from Omron.

  • Product: TL4019-40242TM
  • Manufacturer: Omron
  • Type: Solenoid Locking Interlock Switch
  • Termination Style: Screw Terminal
  • Ingress Protection: IP67
  • Voltage Rating: 230VAC, 24VDC
  • Circuit Configuration: 4PST-3NC/1NO (DB/DM)
  • Actuator Type: Panel Disconnect
  • Temperature Range: -20°C to 55°C
  • Holding Force: 122kgf
  • Approvals: CE, cULus
