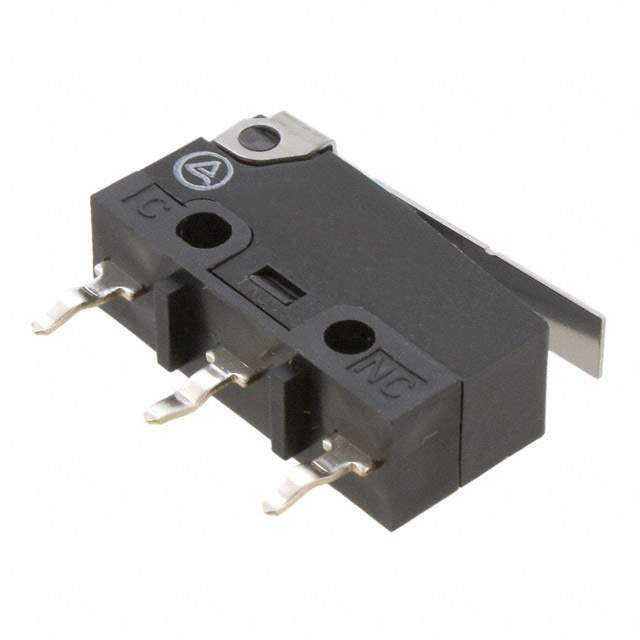

SSG-01P-5 Real Image
Same model may have multiple batches, images only for reference.

SSG-01P-5

Part No SSG-01P-5
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SUBMINIATURE BASIC SWITCH / Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SSG
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 51gf
Release Force 4.000gf
Pretravel 0.025" (0.65mm)
Differential Travel 0.004" (0.1mm)
Overtravel 0.015" (0.4mm)
Temperature Range - Operating -25°C ~ 125°C
Operating Position 0.465" (11.8mm)
Electrical Life 200,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SSG-01
Other Names SSG01P5BYOMZ,SSG-01P-5 BY OMZ,SSG01P5
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233452-SSG-01P-5
Ultra Librarian 3D Model Ultra Librarian SSG-01P-5 CAD Model

Description

The SSG-01P-5 is a limit switch manufactured by Omron Electronics Inc-EMC Div.

  • Category: Switches - Limit Switches
  • Design: Detect the presence or absence of an object
  • Ideal for: Industrial automation systems
  • Circuit: Single-pole double-throw (SPDT)
  • Actuator Type: Round (pin plunger)
  • Voltage Rating: 125 V AC and 30 V DC
  • Mounting: Chassis
  • Termination Style: Solder Lug
  • Mechanical Life: 10,000,000 cycles
  • Temperature Range: -25°C to 125°C
  • Counterfeit Threats: 47 percent chance of being fake
