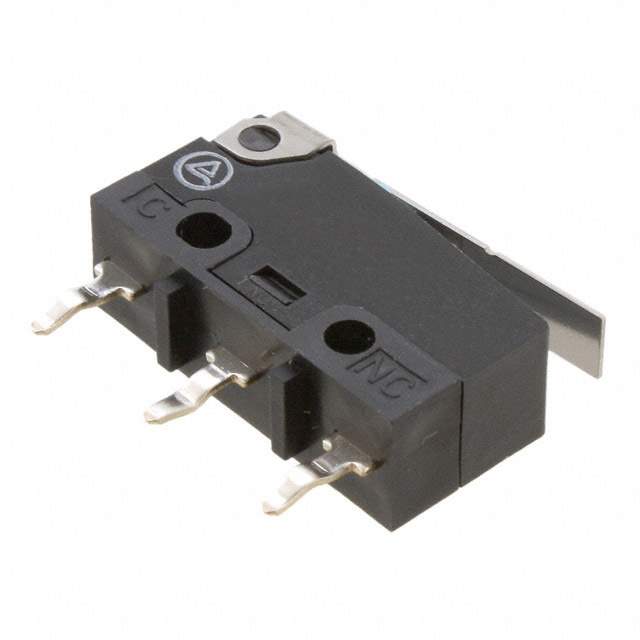

SSG-01L1P Real Image
Same model may have multiple batches, images only for reference.

SSG-01L1P

Part No SSG-01L1P
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SUBMINIATURE BASIC SWITCH  /  Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SSG
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 61gf
Release Force 6.000gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.039" (1.0mm)
Temperature Range - Operating -25°C ~ 125°C
Operating Position 0.480" (12.2mm)
Electrical Life 200,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SSG-01
Other Names SSG01L1P,SSG01L1PBYOMZ,SSG-01L1P BY OMZ
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233456-SSG-01L1P
Ultra Librarian 3D Model Ultra Librarian SSG-01L1P CAD Model

Description

The Omron SSG-01L1P is a SPDT limit switch that features a solder lug termination style and a straight lever actuator type.

  • Circuit: SPDT
  • Termination Style: Solder Lug
  • Actuator Type: Straight lever
  • Voltage Rating: 125VAC and 30VDC
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 10,000,000 cycles
  • Operating Force: 61gf
  • Release Force: 6.000gf
  • Differential Travel: 0.031" (0.8mm)
  • Overtravel: 0.039" (1.0mm)
  • Package: Bulk
  • Ingress Protection Rating: IP40
  • Temperature Range: -25°C to 125°C
  • ECCN: EAR99
  • Current Rating: 100mA (AC/DC)
  • HTSUS Code: 8536.50.7000
