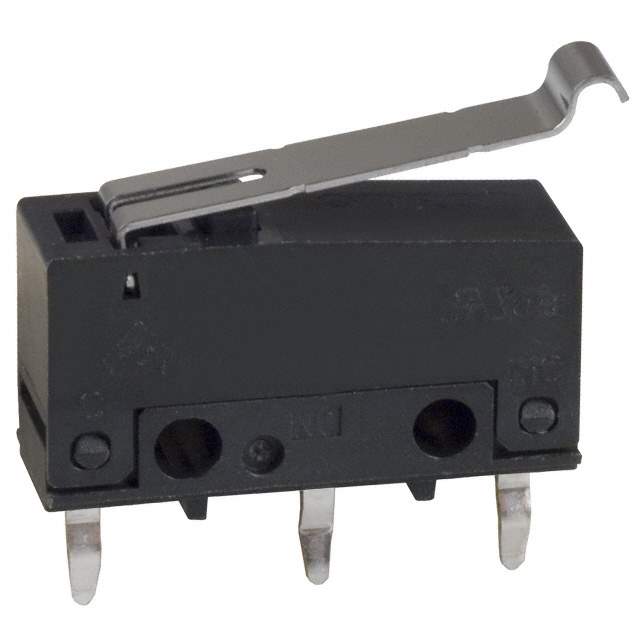

SS-01GL13PB Real Image
Same model may have multiple batches, images only for reference.

SS-01GL13PB

Part No SS-01GL13PB
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V  /  Switch SPDT Through Hole
Datasheet
SS-01GL13PB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS-P
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Simulated Roller
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 51gf
Release Force 5.099gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.039" (1.0mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.420" (10.7mm)
Electrical Life 200,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number SS-01GL
Other Names SS01GL13PBBYOMZ,2266-SS-01GL13PB,SW786,SS01GL13PB,-SS,SS-01GL13PB BY OMZ
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233420-SS-01GL13PB
Ultra Librarian 3D Model Ultra Librarian SS-01GL13PB CAD Model

Description

The Omron 1233420-SS-01GL13PB is a limit switch that is a part of the SS-P series.

  • Termination Style: PC Pin
  • Ingress Protection: IP40
  • Voltage Rating AC: 125 V
  • Voltage Rating DC: 30 V
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever with Simulated Roller
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 1,000,000 cycles
  • Operating Force: 51gf
  • Release Force: 5.099gf
  • Differential Travel: 0.031 inches or 0.8 mm
  • Overtravel: 0.039 inches or 1.0 mm
