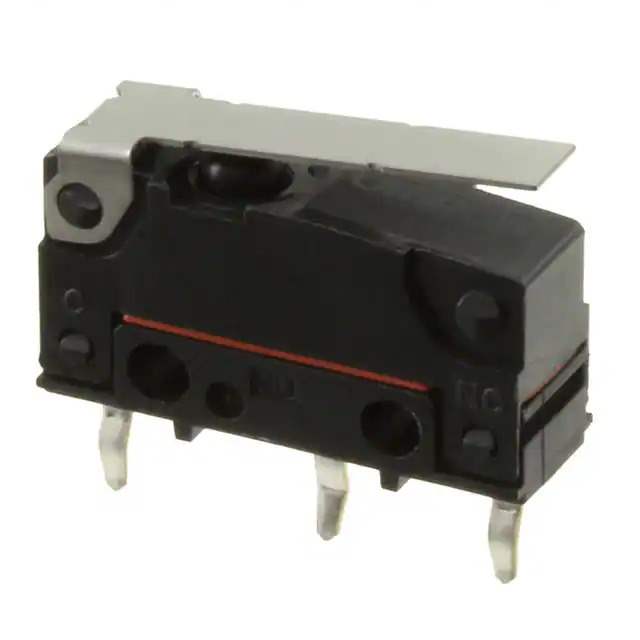

D2SW-P2L1B Real Image
Same model may have multiple batches, images only for reference.

D2SW-P2L1B

Part No D2SW-P2L1B
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description MINIATURE BASIC SWITCH / Switch SPDT Through Hole
Datasheet
D2SW-P2L1B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron
Series D2SW-P
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 2A (AC/DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 61gf
Release Force 5.000gf
Operating Position 0.535" (13.6mm)
Differential Travel 0.031" (0.8mm)
Overtravel 0.031" (0.79mm)
Temperature Range - Operating -20°C ~ 70°C
Electrical Life 50,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2S
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 583466-D2SW-P2L1B
Ultra Librarian 3D Model Ultra Librarian D2SW-P2L1B CAD Model

Description

The D2SW-P series limit switch is a versatile and durable electronic component.

  • Termination Style: PC pin
  • Ingress Protection Rating: IP67
  • Voltage Rating: 250V AC and 30V DC
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever, straight
  • Operating Force: 61gf
  • Mechanical Life: 1,000,000 cycles
  • Operating Temperature: -20°C to 70°C
  • Manufacturer: Omron
