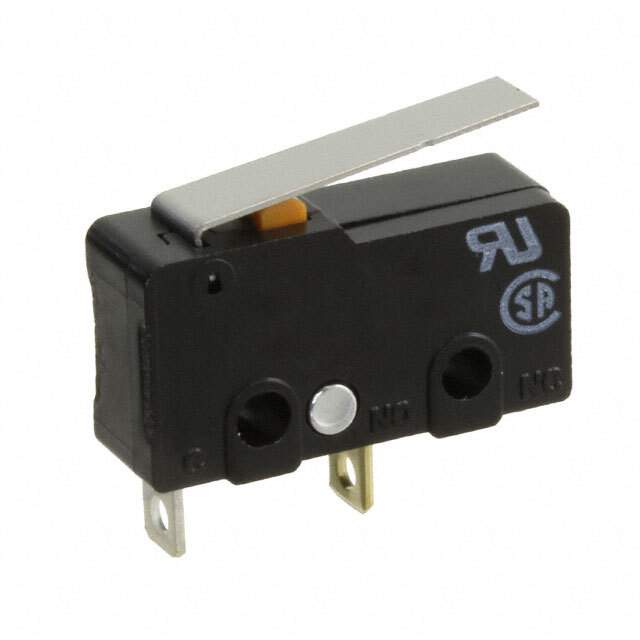

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 50gf
Release Force 6.118gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.345" (8.8mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-5
Other Names SS5GL3,-SS-5GL-3,SS5GL3BYOMI,Z5085
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233508-SS-5GL-3
Ultra Librarian 3D Model Ultra Librarian SS-5GL-3 CAD Model

Description

The Omron Electronics Inc-EMC Div SS-5GL-3 is a limit switch that is designed to operate @ a voltage rating of 125V and a current rating of 5A (AC).

  • Voltage Rating: 125V
  • Current Rating: 5A (AC)
  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Mechanical Life: 30,000,000 cycles
  • Electrical Life: 200,000 cycles
  • Operating Force: 50gf
  • Release Force: 6.118gf
  • Packaging: Bulk
  • Mounting: Chassis Mount
