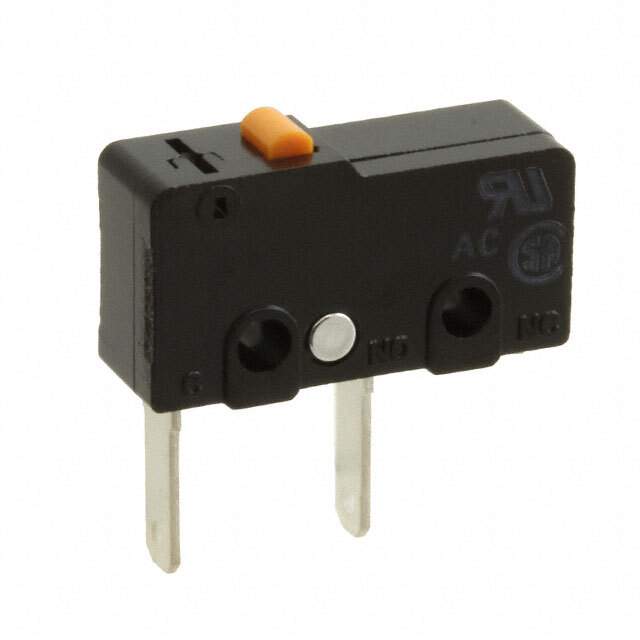

SS-5-F-3 DASH T Real Image
Same model may have multiple batches, images only for reference.

SS-5-F-3 DASH T

Part No SS-5-F-3 DASH T
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SUBMINIATURE BASIC SWITCH / Switch SPST-NO Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Round (Pin Plunger)
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 50gf
Release Force 4.079gf
Pretravel 0.020" (0.5mm)
Differential Travel 0.004" (0.1mm)
Overtravel 0.020" (0.5mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.330" (8.4mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-5-F
Other Names SS-5-F-3DASHT,SS5F3DASHT,Z8678,SS-5-F-3 DASH T,SS-5-F-3DASHT
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233501-SS-5-F-3 DASH T
Ultra Librarian 3D Model Ultra Librarian SS-5-F-3 DASH T CAD Model

Description

The SS-5-F-3 DASH T is a limit switch designed for use in various applications.

  • Termination Style: PC Pin
  • Packaging: Bulk
  • Ingress Protection: IP40
  • Voltage Rating - AC: 125 V
  • Standard Package: 500
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Round (Pin Plunger)
  • Electrical Life: 200,000 cycles
  • Operating Force: 50gf
  • Mechanical Life: 30,000,000 cycles
  • Release Force: 4.079gf
  • Pretravel: 0.020" (0.5mm)
  • Differential Travel: 0.004" (0.1mm)
  • Overtravel: 0.020" (0.5mm)
  • Operating Position: 0.330" (8.4mm)
  • Mounting Type: Through Hole
  • Temperature Range: -25°C ~ 85°C
  • MSL Level: 1 (Unlimited)
  • Current Rating: 5A (AC)
  • HTSUS: 8536.50.7000
  • Manufacturer: Omron Electronics Inc-EMC Div
