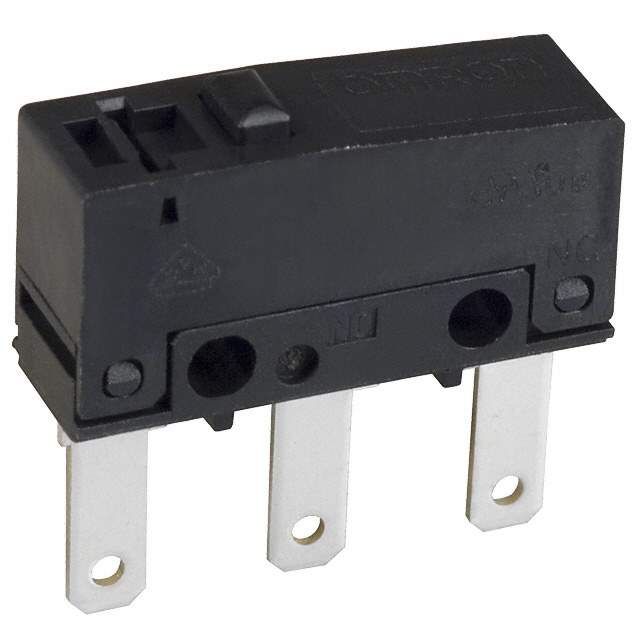

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS-P
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP40
Operating Force 153gf
Release Force 20gf
Pretravel 0.024" (0.6mm)
Differential Travel 0.006" (0.15mm)
Overtravel 0.015" (0.4mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.330" (8.4mm)
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number SS-3GP
Other Names SS-3GPT BY OMZ,2266-SS-3GPT,Q6654093D,SS3GPT,SW766,SS3GPTBYOMZ
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233411-SS-3GPT
Ultra Librarian 3D Model Ultra Librarian SS-3GPT CAD Model

Description

The Omron Electronics Inc-EMC Div SS-3GPT is a limit switch designed for use in a variety of applications.

  • Win Source Part Number: 1233411-SS-3GPT
  • Circuit: SPDT
  • Actuator Type: Round (pin plunger)
  • Electrical Life: 100,000 cycles
  • Voltage Rating: 125V AC, 30V DC
  • Current Rating: 3A (AC/DC)
  • Temperature Range: -25°C to 85°C
