Same model may have multiple batches, images only for reference.

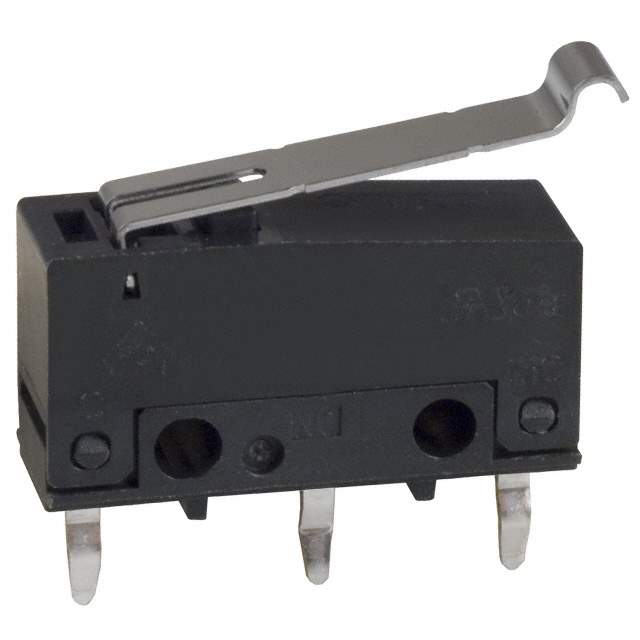

SS-3GL13PB Real Image
Same model may have multiple batches, images only for reference.

SS-3GL13PB

Part No SS-3GL13PB
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 3A 125V / Switch SPDT Through Hole
Datasheet
SS-3GL13PB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS-P
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Simulated Roller
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 51gf
Release Force 5.099gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.039" (1.0mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.420" (10.7mm)
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number SS-3GL
Other Names 2266-SS-3GL13PB,SS3GL13PB,SS-3GL13PB BY OMZ,SW774,SS3GL13PBBYOMZ
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233412-SS-3GL13PB
Ultra Librarian 3D Model Ultra Librarian SS-3GL13PB CAD Model

Description

The Omron Electronics Inc-EMC Div SS-3GL13PB is a SPDT limit switch that has a simulated roller lever actuator type.

  • Voltage Rating: 125V AC, 30V DC
  • Current Rating: 3A (AC/DC)
  • Mechanical Life: 1,000,000 cycles
  • Electrical Life: 100,000 cycles
  • Operating Temperature Range: -25°C to 85°C
  • Differential Travel: 0.031" (0.8mm)
  • Ingress Protection: IP40
  • Mounting: Through Hole
  • Termination Style: PC Pin
  • ECCN: EAR99
  • RoHS: Compliant
