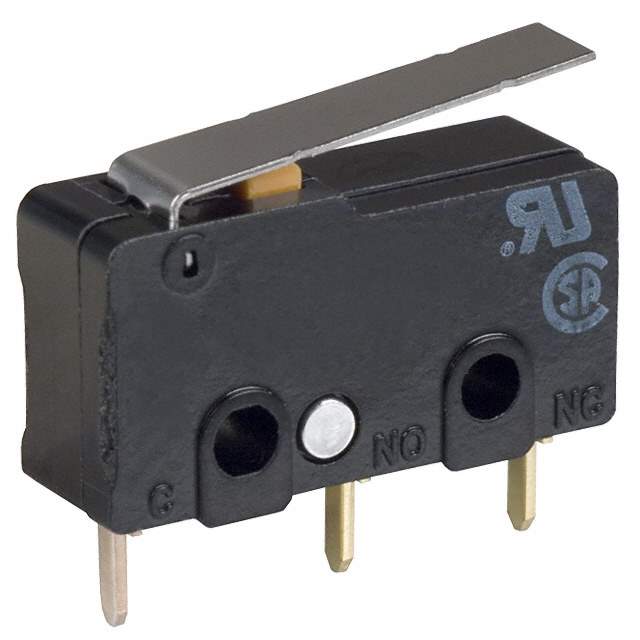

SS-01GLD Real Image
Same model may have multiple batches, images only for reference.

SS-01GLD

Part No SS-01GLD
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V  /  Switch SPDT Through Hole
Datasheet
SS-01GLD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 50gf
Release Force 6.118gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.345" (8.8mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-01GL
Other Names SS01GLD,SW239
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233493-SS-01GLD
Ultra Librarian 3D Model Ultra Librarian SS-01GLD CAD Model

Description

The SS series limit switch from Omron Electronics Inc-EMC Div is a SPDT circuit switch with an On-Mom switch function.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Voltage Rating: 125V AC, 30V DC
  • Current Rating: 100mA
  • Actuator Type: Lever, Straight
  • Mounting Type: Through-Hole
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 30,000,000 cycles
  • Operating Force: 50gf
  • Release Force: 6.118gf
  • Pretravel: 0mm
  • Differential Travel: 0.8mm
  • Overtravel: 1.2mm
  • Operating Position: 8.8mm
  • Ingress Protection: IP40
  • Temperature Range: -25°C to 85°C
