Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Roller
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Ingress Protection IP40
Operating Force 50gf
Release Force 6.118gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.571" (14.5mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-5
Other Names SS5GL2D2,SS-5GL2D2,Z11660
Standard Package 400
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233471-SS-5GL2D2
Ultra Librarian 3D Model Ultra Librarian SS-5GL2D2 CAD Model

Description

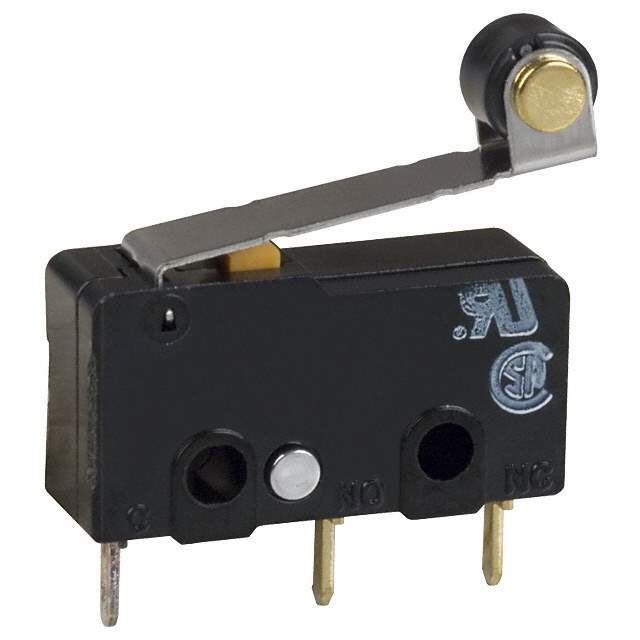

The SS-5GL2D2 is a limit switch from Omron Electronics Inc-EMC Div.

  • Circuit: SPDT
  • Operating Force: 50gf
  • Release Force: 6.118gf
  • Switch Function: On-Mom
  • Actuator Type: Lever, Roller
  • Mechanical Life: 30,000,000 cycles
  • Electrical Life: 200,000 cycles
  • Differential Travel: 0.031" (0.8mm)
  • Overtravel: 0.047" (1.2mm)
  • Mounting Type: Through Hole, Right Angle
  • Operating Position: 0.571" (14.5mm)
  • Voltage Rating: 125 V AC
  • Current Rating: 5A (AC)
  • Ingress Protection: IP40
  • Temperature Range: -25°C ~ 85°C
  • Package: Tray
  • Standard Package: 400
