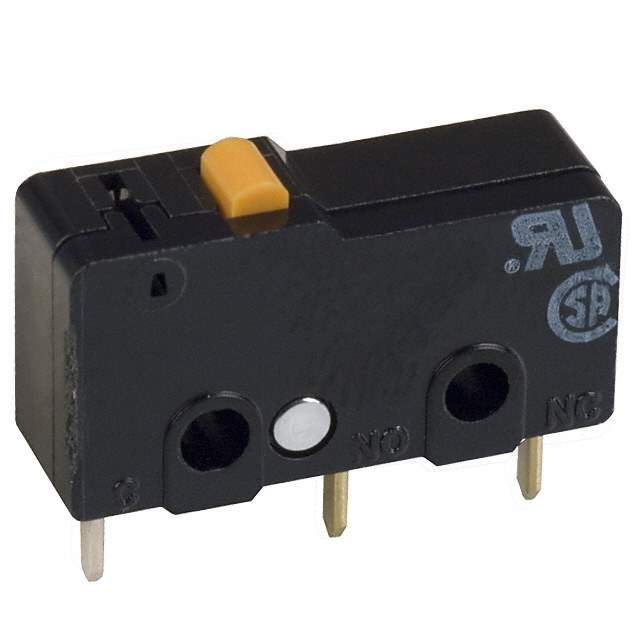

SS-01GL14D Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Formed
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 50gf
Release Force 6.118gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.398" (10.1mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-01GL
Other Names SS01GL14D
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233486-SS-01GL14D
Ultra Librarian 3D Model Ultra Librarian SS-01GL14D CAD Model

Description

The Omron Electronics Inc-EMC Div SS-01GL14D is a high-quality switch designed for Limit Switches applications.

  • Packaging: Tray
  • Termination Style: PC Pin
  • Ingress Protection: IP40
  • Voltage Rating: 125 V (AC) and 30 V (DC)
  • Standard Package: 500
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever, Formed
  • Electrical Life: 200,000 Cycles
  • Mechanical Life: 30,000,000 Cycles
  • Release Force: 6.118gf
  • Pretravel: Not Applicable
  • Differential Travel: 0.031" (0.8mm)
  • Overtravel: 0.047" (1.2mm)
  • Operating Position: 0.398" (10.1mm)
  • Mounting Type: Through Hole
  • Operating Temperature: -25°C ~ 85°C
  • Current Rating: 100mA (AC/DC)
  • HTSUS: 8536.50.7000
