Same model may have multiple batches, images only for reference.

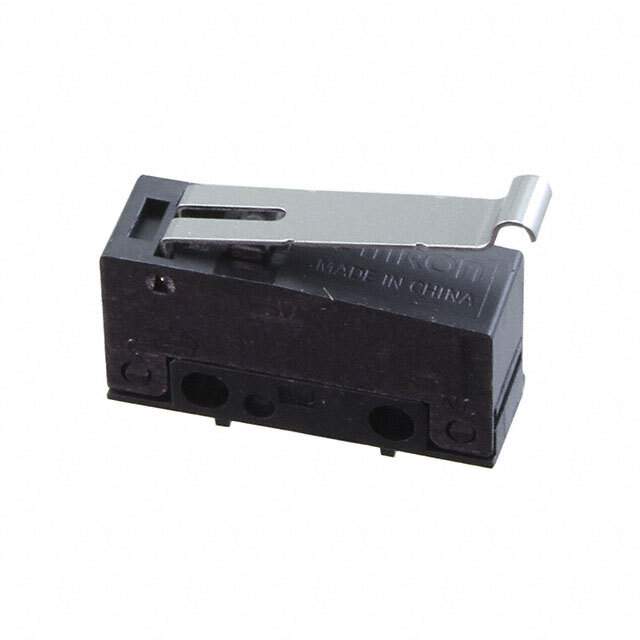

SS-01GL13PD2 Real Image
Same model may have multiple batches, images only for reference.

SS-01GL13PD2

Part No SS-01GL13PD2
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V  /  Switch SPDT Through Hole, Right Angle
Datasheet
SS-01GL13PD2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS-P
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Simulated Roller
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Ingress Protection IP40
Operating Force 51gf
Release Force 5.099gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.039" (1.0mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.420" (10.7mm)
Electrical Life 200,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number SS-01GL
Other Names SS-01GL13PD2,Z8675,SS-01GL13PD2 BYOMZ,SS01GL13PD2BYOMZ,2266-SS-01GL13PD2,SS-01GL13PD2 BY OMZ,SS01GL13PD2
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233429-SS-01GL13PD2
Ultra Librarian 3D Model Ultra Librarian SS-01GL13PD2 CAD Model

Description

The Omron Electronics Inc-EMC Div SS-01GL13PD2 is a limit switch that has a circuit of SPDT.

  • Circuit: SPDT
  • Supply and Demand Status: balanced
  • Voltage Rating: 125V (AC) and 30V (DC)
  • Operating Force: 51gf
  • Mechanical Life: 1,000,000 cycles
  • Release Force: 5.099gf
