Same model may have multiple batches, images only for reference.

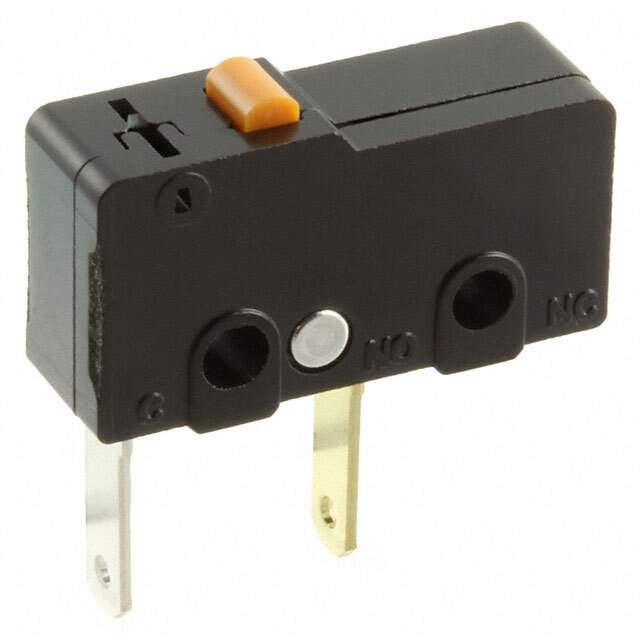

SS-01-3T Real Image
Same model may have multiple batches, images only for reference.

SS-01-3T

Part No SS-01-3T
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP SPST-NO 100MA 125V  /  Switch SPST-NO Chassis Mount
Datasheet
SS-01-3T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP40
Operating Force 150gf
Release Force 25gf
Pretravel 0.020" (0.5mm)
Differential Travel 0.004" (0.1mm)
Overtravel 0.020" (0.5mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.330" (8.4mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-01
Other Names SS013TBYOMI,SS013T,-SS-01-3T,Z5041
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233518-SS-01-3T
Ultra Librarian 3D Model Ultra Librarian SS-01-3T CAD Model

Description

The SS-01-3T is a limit switch from Omron Electronics Inc-EMC Div.

  • Termination Style: Quick Connect
  • Actuator Type: 0.110" (2.8mm) Pin Plunger
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Mechanical Life: 30,000,000 Cycles
  • Electrical Life: 200,000 Cycles
  • Operating Force: 150gf
  • Release Force: 25gf
  • Pretravel: 0.020" (0.5mm)
  • Differential Travel: 0.004" (0.1mm)
  • Overtravel: 0.020" (0.5mm)
  • Operating Position: 0.330" (8.4mm)
  • Operating Temperature: -25°C to 85°C
  • ECCN: EAR99
  • MSL: 1 (Unlimited)
  • Current Rating: 100mA (AC/DC)
  • HTSUS: 8536.50.7000
  • Other Names: SS013TBYOMI, SS013T, -SS-01-3T, Z5041
