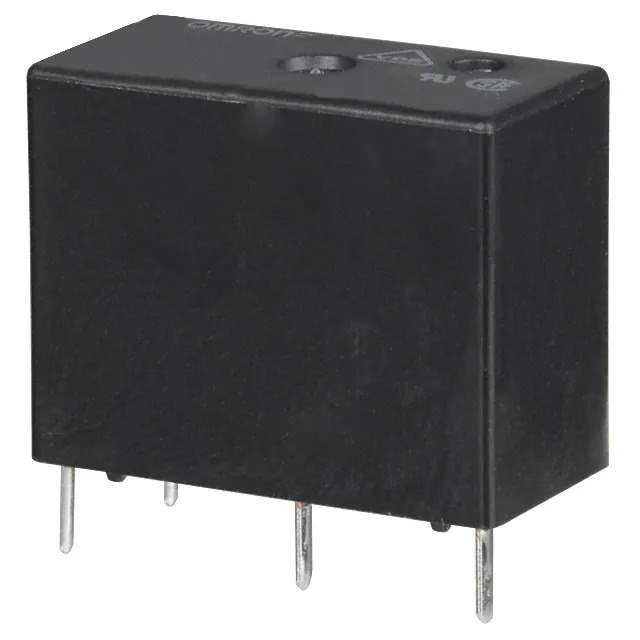

G5SB-14 DC24 Real Image
Same model may have multiple batches, images only for reference.

G5SB-14 DC24

Part No G5SB-14 DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 5A 24V / General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
Datasheet
G5SB-14 DC24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron
Series G5SB
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 16.7 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 18 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 1.44 kOhms
Standard Package 100 pcs
Moisture Sensitivity Level (MSL) Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 849364-G5SB-14 DC24
Ultra Librarian 3D Model Ultra Librarian G5SB-14 DC24 CAD Model

Description

The G5SB-14 DC24 is a power relay from the G5SB series.

  • Contact Form: SPDT (1 Form C)
  • Contact Rating: 5A
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.44 kOhms
  • Switching Voltage: 250VAC and 30VDC maximum
  • Mounting Type: through-hole
  • Seal: fully sealed
  • Operating Temperature Range: -40°C to 70°C
  • Manufacturer: Omron
  • Status: obsolete
