Same model may have multiple batches, images only for reference.

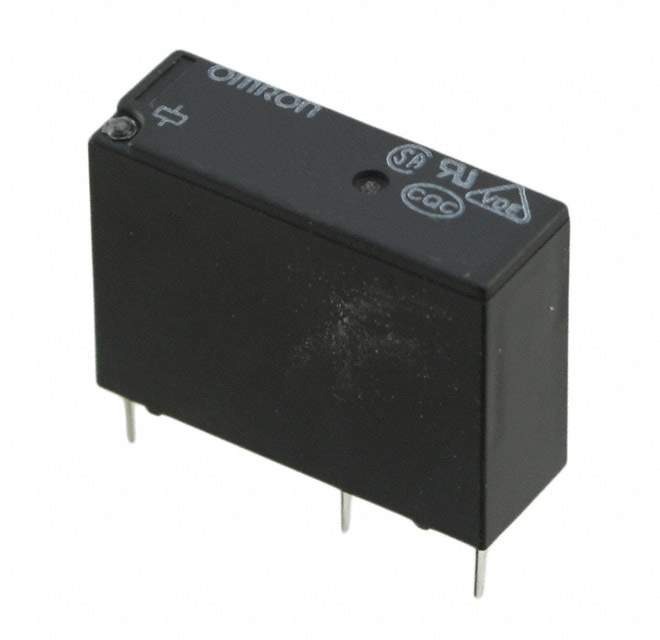

G5NB-1A4-E-DC24-(N)-(A) Real Image
Same model may have multiple batches, images only for reference.

G5NB-1A4-E-DC24-(N)-(A)

Part No G5NB-1A4-E-DC24-(N)-(A)
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description Electromechanical Relay SPST-NO 5A 24VDC 2.88KOhm Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Coil Current 8.3 mA
Coil Resistance 2.88 kΩ
Coil Voltage (DC) 24 V
Contact Material Silver
Max Current Rating 5 A
Maximum Operating Temperature 70 °C
Max Voltage Rating (AC) 250 V
Max Voltage Rating (DC) 30 V
Min Operating Temperature -40 °C
Mount Through Hole
Radiation Hardening No
RoHS Compliant
Termination PC Pins
Throw Configuration SPST
Win Source Part Number 1007190-G5NB-1A4-E-DC24-(N)-(A)
Categories Power Relays,Over 2 Amps
Manufacturer Omron
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian G5NB-1A4-E-DC24-(N)-(A) CAD Model

Description

The Omron G5NB-1A4-E-DC24-(N)-(A) is a power relay that has a maximum voltage rating of 250VAC and 30VDC and a maximum current rating of 5A.

  • Manufacturer: Omron
  • Part Name: G5NB-1A4-E-DC24-(N)-(A)
  • Type: Power relay
  • Maximum Voltage Rating: 250VAC and 30VDC
  • Maximum Current Rating: 5A
  • Throw Configuration: SPST
  • Coil Voltage: 24VDC
  • Coil Resistance: 2.88kΩ
  • Coil Current: 8.3mA
  • Mounting Type: Through-hole
  • Package Type: Bulk
  • Maximum Operating Temperature: 70°C
  • Minimum Operating Temperature: -40°C
  • Application: Designed for use in electronic circuits that require a power relay
